Card Type	TV card
Video Chip Set	N/A
Highest Resolution Supported	Unidentified
Maximum Video Memory	N/A
Data Bus	8-bit ISA
Video Types Supported	Unidentified

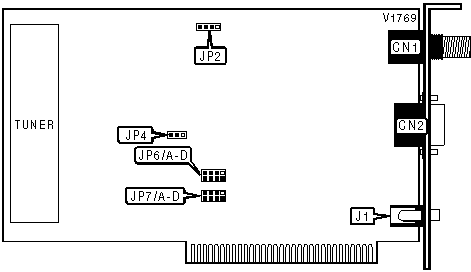

CONNECTIONS
Function	Label	Function	Label
TV antenna connector	CN1	Speaker out	J1
15-pin analog video port	CN2	Remote sensor	JP2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Base I/O address 3A0h select	JP4	Pins 1 & 2 closed
	Base I/O address 2xxh select	JP4	Pins 2 & 3 closed

INTERRUPT SELECTION
IRQ		JP7/A	JP7/B	JP7/C	JP7/D
	5	Closed	Open	Open	Open
	6	Open	Closed	Open	Open
»	7	Open	Open	Closed	Open
	9	Open	Open	Open	Closed

TV SYSTEM CONFIGURATION
Setting	JP6/A	JP6/B	JP6/C	JP6/D
NTSC-USA	Closed	Closed	Closed	Closed
NTSC-Japan	Closed	Closed	Closed	Open
PAL-D/K	Closed	Open	Closed	Closed
PAL-M	Open	Closed	Closed	Closed
PAL-I	Closed	Open	Open	Closed
PAL-Australia	Closed	Open	Closed	Open
