IBM CORPORATION
ISA SOUND CARD
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
I/O Options |
CD-ROM interfaces (3), game/MIDI port, line in, microphone in, speaker out, line out, CD-ROM audio in (2) |
|
Data Bus |
16-bit ISA |
|

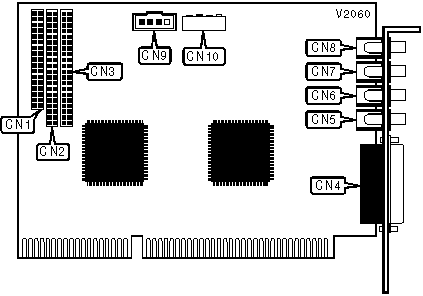

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Sony CD-ROM interface |
CN1 |
Line out |
CN6 |
|
CD-ROM interface |
CN2 |
Line in |
CN7 |
|
CD-ROM interface |
CN3 |
Speaker out |
CN8 |
|
Game/MIDI port |
CN4 |
CD audio in |
CN9 |
|
Microphone in |
CN5 |
CD audio in |
CN10 |
|
Note:Either CN2 or CN3 is an IDE type interface. | |||
