Card Type	Digital I/O card, DSP processor card
I/O Options	Industry Pack I/O connectors (2), external com port connectors (6), 4xbus expansion connector, JTAG hardware debugger port, factory test port
Data Bus	32-bit PCI
Card Size	Full-length, full-height card

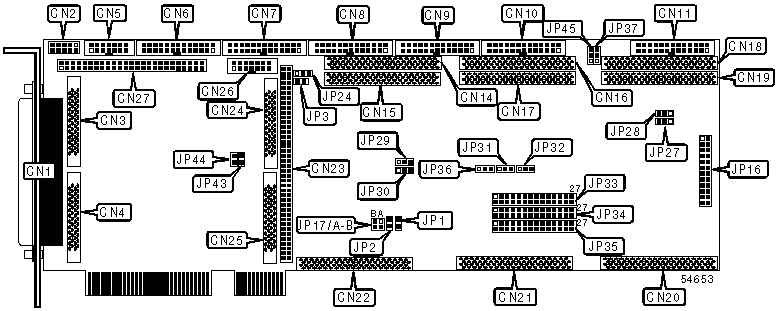

CONNECTIONS
Function	Label	Function	Label
Industry pack I/O connector	CN1	Unidentified	CN16
Unidentified	CN2	Unidentified	CN17
Unidentified	CN3	Unidentified	CN18
Unidentified	CN4	Unidentified	CN19
Unidentified	CN5	Unidentified	CN20
26-pin com port connector - external	CN6	Unidentified	CN21
26-pin com port connector - external	CN7	Unidentified	CN22
26-pin com port connector - external	CN8	4XBUS connector	CN23
26-pin com port connector - external	CN9	Unidentified	CN24
26-pin com port connector - external	CN10	Unidentified	CN25
26-pin com port connector - external	CN11	JTAG hardware debugger port	CN26
Unidentified	CN14	Industry pack I/O connector	CN27
Unidentified	CN15	Factory test port - do not use	JP16

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	TIM site B JTAG TIM installed	JP1	Open
	TIM site B JTAG TIM not installed	JP1	Closed
»	TIM site C JTAG TIM installed	JP2	Open
	TIM site C JTAG TIM not installed	JP2	Closed
»	TIM site A JTAG installed	JP3	Open
	TIM site A JTAG not installed	JP3	Closed
»	JTAG passthrough in use	JP24	Open
	JTAG passthrough not in use	JP24	Closed
»	Factory configured - do not alter	JP29	Pins 2 & 3 open
»	Factory configured - do not alter	JP30	Pins 2 & 3 open
»	4XBUS strobe GBANK3	JP36	Pins 1 & 2 closed
	4XBUS strobe STRB0	JP36	Pins 2 & 3 closed
»	Factory configured - do not alter	JP37	Unidentified
»	IP site A data pulldown enabled	JP43	Closed
	IP site A data pulldown disabled	JP43	Open
»	IP site B data pulldown enabled	JP44	Closed
	IP site B data pulldown disabled	JP44	Open
»	Factory configured - do not alter	JP45	Unidentified

IP CLOCK SELECTION
Setting		Label	Position
»	IP clock IPA = 8MHz	JP17/A	Open
	IP clock IPA = 32MHz	JP17/A	Closed
»	IP clock IPB = 8MHz	JP17/B	Open
	IP clock IPB = 32MHz	JP17/B	Closed

TIM SITE A COM PORT 1 DIRECTION SELECTION
Setting	JP28
Bi-directional	Pins 1 & 2 closed
Output only	Pins 2 & 3 closed
Reserved	Open

TIM SITE A COM PORT 3 DIRECTION SELECTION
Setting	JP27
Input only	Open
Bi-directional	Pins 1 & 2 closed
Reserved	Pins 2 & 3 closed

TIM SITE B COM PORT 1 DIRECTION SELECTION
Setting	JP30
Reserved	Open
Bi-directional	Pins 1 & 2 closed
Output only	Pins 2 & 3 closed

TIM SITE B COM PORT 3 DIRECTION SELECTION
Setting	JP29
Input only	Open
Bi-directional	Pins 1 & 2 closed
Reserved	Pins 2 & 3 closed

TIM SITE C COM PORT 1 DIRECTION SELECTION
Setting	JP31
Bi-directional	Pins 1 & 2 closed
Output only	Pins 2 & 3 closed
Reserved	Open

TIM SITE C COM PORT 3 DIRECTION SELECTION
Setting	JP32
Input only	Open
Bi-directional	Pins 1 & 2 closed
Reserved	Pins 2 & 3 closed

TIM SITE A INTERRUPT SELECTOR INT0
Interrupt source		JP33
	External interrupt 0	Pins 1 & 3 closed
	IP A DMA request 0	Pins 2 & 4 closed
	IP A interrupt 0	Pins 3 & 5 closed
	IP B DMA request 0	Pins 4 & 6 closed
	IP B interrupt 0	Pins 7 & 9 closed
»	PCI write FIFO empty	Pins 8 & 10 closed
	External interrupt 1	Pins 9 & 11 closed
	IP B interrupt 1	Pins 10 & 12 closed

TIM SITE A INTERRUPT SELECTOR INT1
Interrupt source		JP33
	External interrupt 1	Pins 11 & 13 closed
	IP B interrupt 1	Pins 12 & 14 closed
	IP A interrupt 1	Pins 13 & 15 closed
»	PCI read FIFO full	Pins 14 & 16 closed

TIM SITE A INTERRUPT SELECTOR INT2
Interrupt source		JP33
	IP A DMA request 1	Pins 17 & 19 closed
	Global interrupt 0	Pins 18 & 20 closed
	IP B DMA request 1	Pins 19 & 21 closed
»	PCI interrupt	Pins 20 & 22 closed

TIM SITE A INTERRUPT SELECTOR NMI
Interrupt source	JP33
Global interrupt 0	Pins 23 & 25 closed
External interrupt 2	Pins 24 & 26 closed
Global interrupt 1	Pins 25 & 27 closed
External interrupt 3	Pins 26 & 28 closed

TIM SITE B INTERRUPT SELECTOR INT0
Interrupt source		JP34
	External interrupt 0	Pins 1 & 3 closed
	IP A DMA request 0	Pins 2 & 4 closed
	IP A interrupt 0	Pins 3 & 5 closed
	IP B DMA request 0	Pins 4 & 6 closed
	IP B interrupt 0	Pins 7 & 9 closed
»	PCI write FIFO empty	Pins 8 & 10 closed
	External interrupt 1	Pins 9 & 11 closed
	IP B interrupt 1	Pins 10 & 12 closed

TIM SITE B INTERRUPT SELECTOR INT1
Interrupt source		JP34
	External interrupt 1	Pins 11 & 13 closed
	IP B interrupt 1	Pins 12 & 14 closed
	IP A interrupt 1	Pins 13 & 15 closed
»	PCI read FIFO full	Pins 14 & 16 closed

TIM SITE B INTERRUPT SELECTOR INT2
Interrupt source		JP34
	IP A DMA request 1	Pins 17 & 19 closed
	Global interrupt 2	Pins 18 & 20 closed
	IP B DMA request 1	Pins 19 & 21 closed
»	PCI interrupt	Pins 20 & 22 closed

TIM SITE B INTERRUPT SELECTOR NMI
Interrupt source	JP34
Global interrupt 2	Pins 23 & 25 closed
External interrupt 2	Pins 24 & 26 closed
Global interrupt 3	Pins 25 & 27 closed
External interrupt 3	Pins 26 & 28 closed

TIM SITE C INTERRUPT SELECTOR INT0
Interrupt source		JP35
	External interrupt 0	Pins 1 & 3 closed
	IP A DMA request 0	Pins 2 & 4 closed
	IP A interrupt 0	Pins 3 & 5 closed
	IP B DMA request 0	Pins 4 & 6 closed
	IP B interrupt 0	Pins 7 & 9 closed
»	PCI write FIFO empty	Pins 8 & 10 closed
	External interrupt 1	Pins 9 & 11 closed
	IP B interrupt 1	Pins 10 & 12 closed

TIM SITE C INTERRUPT SELECTOR INT1
Interrupt source		JP35
	External interrupt 1	Pins 11 & 13 closed
	IP B interrupt 1	Pins 12 & 14 closed
	IP A interrupt 1	Pins 13 & 15 closed
»	PCI read FIFO full	Pins 14 & 16 closed

TIM SITE C INTERRUPT SELECTOR INT2
Interrupt source		JP35
	IP A DMA request 1	Pins 17 & 19 closed
	Global interrupt 4	Pins 18 & 20 closed
	IP B DMA request 1	Pins 19 & 21 closed
»	PCI interrupt	Pins 20 & 22 closed

TIM SITE C INTERRUPT SELECTOR NMI
Interrupt source	JP35
Global interrupt 4	Pins 23 & 25 closed
External interrupt 2	Pins 24 & 26 closed
Global interrupt 5	Pins 25 & 27 closed
External interrupt 3	Pins 26 & 28 closed
