Card Type	Floppy drive controller
Chipset/Controller	Unidentified
I/O Options	Floppy drive interface (4)
Maximum DRAM	N/A

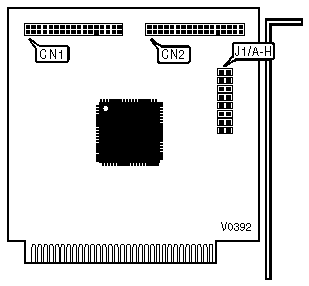

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive interface (for drives 1 & 2)	CN1	Floppy drive interface (for drives 3 & 4)	CN2

FIRST DRIVE TYPE SELECTION
Type	J1/A	J1/B
360KB	Closed	Open
720KB	Closed	Closed
1.2MB	Open	Open
1.44MB	Open	Closed

SECOND DRIVE TYPE SELECTION
Type	J1/C	J1/D
360KB	Closed	Open
720KB	Closed	Closed
1.2MB	Open	Open
1.44MB	Open	Closed

THIRD DRIVE TYPE SELECTION
Type	J1/E	J1/F
360KB	Closed	Open
720KB	Closed	Closed
1.2MB	Open	Open
1.44MB	Open	Closed

FOURTH DRIVE TYPE SELECTION
Type	J1/G	J1/H
360KB	Closed	Open
720KB	Closed	Closed
1.2MB	Open	Open
1.44MB	Open	Closed
