Card Type	Sound card
Chipset Controller	Unidentified
I/O Options	CD audio in, gain control, game/MIDI port, line in, line/speaker out, microphone in, SCSI interface, wavetable interface
Maximum DRAM	N/A

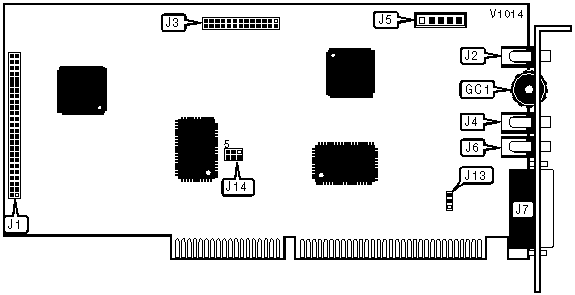

CONNECTIONS
Purpose	Location	Purpose	Location
Gain control	GC1	Line/speaker out	J4
SCSI interface	J1	CD audio in	J5
Line in	J2	Mic in	J6
Wavetable interface	J3	Game/MIDI port	J7

DRQ SHARING CONFIGURATION
Setting		J13
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

ADDRESS SELECTION (PINS 5 & 6)
Address		J14
»	230h	Closed
	330h	Open

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
J14	Pins 1 & 2, 3 & 4 open
