NATIONAL INSTRUMENTS
AT-MIO-64F-5
|
Card Type |
Analog to digital timing converter |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Analog input, analog output, digital input, digital output |
|
Maximum DRAM |
N/A |
|

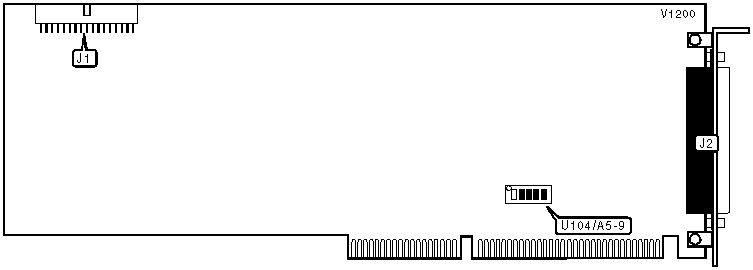

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
34-pin interface connector |
J1 |
100-pin I/O connector |
J2 |
|
BASE I/O ADDRESS SELECTION | ||||||
|
Address |
U104/A5 |
U104/A6 |
U104/A7 |
U104/A8 |
U104/A9 | |
| » |
220h |
On |
Off |
Off |
Off |
On |
|
100h |
Off |
Off |
Off |
On |
Off | |
|
120h |
On |
Off |
Off |
On |
Off | |
|
140h |
Off |
On |
Off |
On |
Off | |
|
160h |
On |
On |
Off |
On |
Off | |
|
180h |
Off |
Off |
On |
On |
Off | |
|
360h |
On |
On |
Off |
On |
On | |
|
380h |
Off |
Off |
On |
On |
On | |
|
3A0h |
On |
Off |
On |
On |
On | |
|
3C0h |
Off |
On |
On |
On |
On | |
|
3E0h |
On |
On |
On |
On |
On | |
|
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. Switch A9 is the Most Significant Bit and switch A5 is the Least Significant Bit. The switches have the following decimal values: switch A9=512, A8=256, A7=128, A6=64, A5=32. Turn on the switches and add the values of the switches that are on to obtain the correct memory address. (On=1, Off=0) | ||||||
