Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	CD-ROM audio (3), CD-ROM interface (3), game port, IDE interface, line in, line out, microphone, speaker, wavetable
Data Bus	16-bit ISA
Floppy drives supported	None

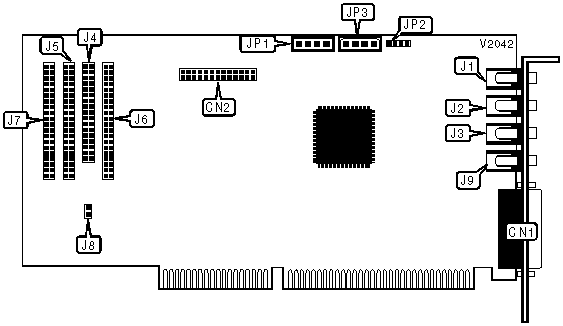

CONNECTIONS
Function	Label	Function	Label
Game port	CN1	Panasonic CD-ROM interface	J6
Wavetable	CN2	IDE interface	J7
Speaker	J1	Microphone	J9
Line out	J2	Mitsumi CD - audio in	JP1
Line in	J3	Sony CD - audio in	JP2
Sony CD-ROM interface	J4	Panasonic CD - audio in	JP3
Mitsumi CD-ROM interface	J5

USER CONFIGURABLE SETTINGS
Function	Label	Position
IDE interface enabled	J8	Closed
IDE interface disabled	J8	Open
