Card Type	Sound card
Chipset	Analog Devices ADSP-2115
I/O Options	CD-ROM interface (2), CD-ROM audio out, game/MIDI port, audio line in, audio line out, microphone in, speaker out, wavetable header
Data Bus	16-bit ISA

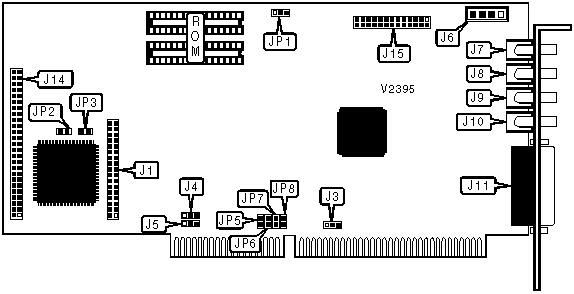

CONNECTIONS
Function	Label	Function	Label
Mitsumi CD-ROM interface	J1	Microphone in	J10
CD-ROM audio out	J6	Game/MIDI port	J11
Speaker out	J7	SCSI CD-ROM interface	J14
Audio line out	J8	Wavetable header	J15
Audio line in	J9

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Base I/O address set to 220h	J3	Pins 2 & 3 closed
	Base I/O address set to 240h	J3	Pins 1 & 2 closed
»	Factory configured - do not alter	J4	Unidentified
»	Factory configured - do not alter	J5	Unidentified

WAVETABLE ROM CONFIGURATION
Size		ROM
»	1MB	(2) 512K x 16
	2MB	(2) 1M x 16

WAVETABLE ROM JUMPER CONFIGURATION
Size		JP1
»	1MB	Pins 1 & 2 closed
	2MB	Pins 2 & 3 closed

SCSI ADDRESS CONFIGURATION
Setting		JP2	JP3
	C8000h	Closed	Open
»	CA000h	Open	Open
	CE000h	Open	Closed
	DE000h	Closed	Closed

SCSI INTERRUPT SELECTION
Setting	JP5	JP6	JP7	JP8
IRQ4	Closed	Open	Open	Open
IRQ11	Open	Closed	Open	Open
IRQ12	Open	Open	Closed	Open
IRQ15	Open	Open	Open	Closed
