Card Type	Memory
Chipset	Unidentified
Maximum Onboard Memory	2MB DRAM
Data Bus	16-bit ISA

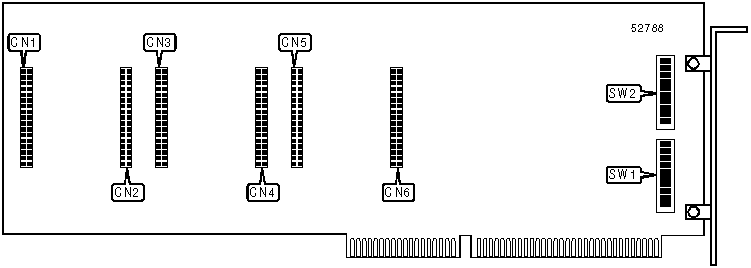

CONNECTIONS
Function	Label	Function	Label
Header for Bank 3 module	CN1	Header for Bank 2 module	CN4
Header for Bank 3 module	CN2	Header for Bank 1 module	CN5
Header for Bank 2 module	CN3	Header for Bank 1 module	CN6

DRAM CONFIGURATION
Setting	Bank 1	Bank 2	Bank 3
512KB	None	None	None
1MB	Installed	None	None
1.5MB	Installed	Installed	None
2MB	Installed	Installed	Installed
Note:The location and configuration of Bank 0 is unidentified.

EXTENDED MEMORY IN SYSTEM
Size	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
0MB	Off	Off	Off	On	Off	Off
1MB	Off	Off	On	Off	Off	Off
2MB	Off	Off	On	On	Off	Off
3MB	Off	On	Off	Off	Off	Off
4MB	Off	On	Off	On	Off	Off
5MB	Off	On	On	Off	Off	Off
6MB	Off	On	On	On	Off	Off
7MB	On	Off	Off	Off	Off	On
8MB	On	Off	Off	On	Off	On
9MB	On	Off	On	Off	Off	On
10MB	On	Off	On	On	Off	On
11MB	On	On	Off	Off	Off	On
12MB	On	On	Off	On	Off	On
13MB	On	On	On	Off	Off	On
14MB	On	On	On	On	Off	On

EXTENDED MEMORY IN SYSTEM (CON’T)
Size	SW1/7	SW1/8	SW1/9	SW1/10	SW2/1	SW2/2	SW2/3
0MB	Off	Off	On	On	Off	Off	On
1MB	Off	On	Off	On	Off	Off	On
2MB	Off	On	On	On	Off	On	Off
3MB	On	Off	Off	On	Off	On	Off
4MB	On	Off	On	On	Off	On	On
5MB	On	On	Off	On	Off	On	On
6MB	On	On	On	On	On	Off	Off
7MB	Off	Off	Off	On	On	Off	Off
8MB	Off	Off	On	On	On	Off	On
9MB	Off	On	Off	On	On	Off	On
10MB	Off	On	On	On	On	On	Off
11MB	On	Off	Off	On	On	On	Off
12MB	On	Off	On	On	On	On	On
13MB	On	On	Off	On	On	On	On
14MB	On	On	On	On	On	On	On

EXTENDED MEMORY IN SYSTEM (CON’T)
Size	SW2/4	SW2/5	SW2/6	SW2/7	SW2/8	SW2/9	SW2/10
0MB	Off	Off	Off	Off	On	Off	On
1MB	On	Off	Off	Off	On	On	On
2MB	Off	Off	Off	On	Off	Off	On
3MB	On	Off	Off	On	Off	On	On
4MB	Off	Off	Off	On	On	Off	On
5MB	On	Off	Off	On	On	On	On
6MB	Off	Off	On	Off	Off	Off	On
7MB	On	Off	On	Off	Off	On	On
8MB	Off	Off	On	Off	On	Off	On
9MB	On	Off	On	Off	On	On	On
10MB	Off	Off	On	On	Off	Off	On
11MB	On	Off	On	On	Off	On	On
12MB	Off	Off	On	On	On	Off	On
13MB	On	Off	On	On	On	On	On
14MB	On	On	On	On	On	On	On
