Card Type	CD-ROM Interface card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Interface connector
Data Bus	16-bit ISA

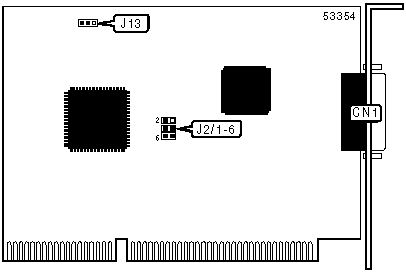

CONNECTIONS
Function	Label
SCSI Interface connector	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	High speed bus - enabled	J13	Pins 2 & 3 closed
	High speed bus - disabled	J13	Pins 1 & 2 closed

BOARD ID SELECTION
Setting		J2/pins 1 & 2	J2/pins 3 & 4	J2/pins 5 & 6
»	0	Open	Open	Open
	1	Closed	Open	Open
	2	Open	Closed	Open
	3	Closed	Closed	Open
	4	Open	Open	Closed
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.

MISCELLANEOUS TECHNICAL NOTES

Note: Termination Power and termination settings are unidentified.
