MEDIA VISION TECHNOLOGY, INC.
FUSION CD16 REV. D (650-0032-01)
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game/MIDI port, audio in (2), CD-interface, microphone in, stereo line in, stereo line out, PC speaker connector |
|
Data Bus |
16-bit ISA |
|

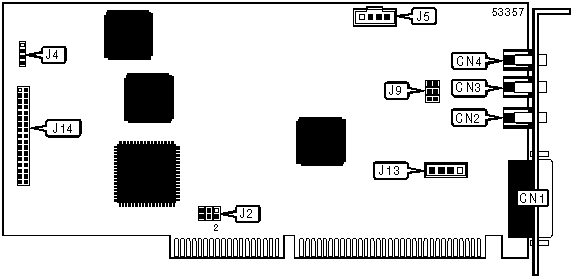

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Game/MIDI port |
CN1 |
PC speaker connector |
J4 |
|
Microphone in |
CN2 |
Audio in - CD-ROM |
J5 |
|
Stereo line out |
CN3 |
Aux. Audio in - CD-ROM |
J13 |
|
Stereo line in |
CN4 |
CD-ROM interface (Sony) |
J14 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
J9 |
Unidentified |
|
BOARD ID SELECTION | ||||
|
Setting |
J2/pins 1 & 2 |
J2/pins 3 & 4 |
J2/pins 5 & 6 | |
| » |
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open | |
|
2 |
Open |
Closed |
Open | |
|
3 |
Closed |
Closed |
Open | |
|
4 |
Open |
Open |
Closed | |
|
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings. | ||||
