MAXPEED
SS-16
|
Card Type |
Multi-I/O card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
64K SRAM |
|
I/O Options |
Serial ports (16) |
|
Data Bus |
16-bit ISA |
|

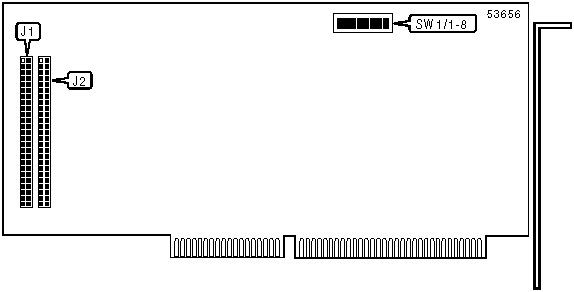

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial ports via 50-pin connector |
J1 |
Serial ports via 50-pin connector |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
Factory configured - do not alter |
SW1/2 |
On |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
|
BIOS ADDRESS SELECTION | ||||||
|
Address |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 | |
|
C0000h |
On |
On |
On |
On |
Off | |
|
C4000h |
Off |
On |
On |
On |
Off | |
|
C8000h |
On |
Off |
On |
On |
Off | |
|
CC000h |
Off |
Off |
On |
On |
Off | |
| » |
D0000h |
On |
On |
Off |
On |
Off |
|
D4000h |
Off |
On |
Off |
On |
Off | |
|
D8000h |
On |
Off |
Off |
On |
Off | |
|
DC000h |
Off |
Off |
Off |
On |
Off | |
|
E0000h |
On |
On |
On |
Off |
Off | |
|
E4000h |
Off |
On |
On |
Off |
Off | |
|
E8000h |
On |
Off |
On |
Off |
Off | |
|
EC000h |
Off |
Off |
On |
Off |
Off | |

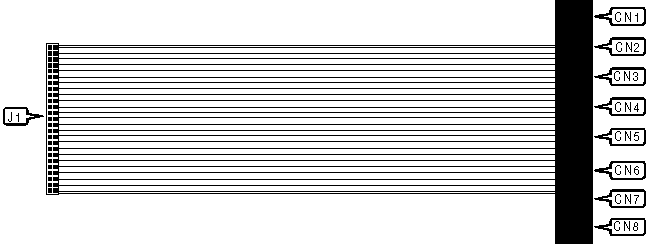

Harmonica connector
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
50-pin connector |
J1 |
RJ-11 connectors |
CN1 - CN8 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The SS-16 uses two Harmonica connectors to provide 16 serial ports. |
