Card Type	Multi-I/O card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Audio processor module, audio/visual module, data module (2) remote on, radio board connector, MPEG connector, audio in CD-ROM, audio out CD-ROM, S-video in, antenna in, line in, multicable port line out (multiplexer)
Hard Drives supported	None
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Full-length

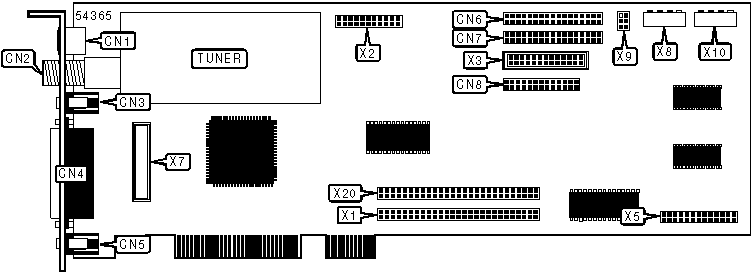

CONNECTIONS
Function	Label	Function	Label
S-video in	CN1	Header connector to audio/visual expansion module	X2
Antenna in	CN2	MPEG connector	X3
Line in	CN3	Header connector to audio processor module	X5
25-pin multicable port	CN4	Remote-on connector	X7
Line out (multiplexer)	CN5	Audio out CD-ROM	X8
Unidentified	CN6	Audio in CD-ROM	X9
Unidentified	CN7	Radio board connector	X10
Unidentified	CN8	Header connector to data expansion module	X20
Header connector to data expansion module	X1
Note: Some expansion modules may still be in development; consult vendor for availability.

CONNECTIONS
Function	Label
Header connector to main board	X4
