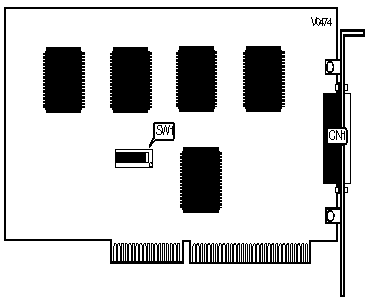

QUATECH, INC.
MXI-100
|
Card Type |
Serial I/O controller |
|
Chipset/Controller |
Unidentified |
|
I/O Options |
I/O port |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |
|
Purpose |
Location |
|
I/O interface |
J1 |
|
INTERRUPT SOURCE | |||
|
Source |
J4/A |
J4/B | |
| » |
Terminal count on DMA transfer |
Closed |
Open |
|
TMS9914A |
Open |
Closed | |
|
INTERRUPT SELECT | ||||||
|
IRQ |
J1/A |
J1/B |
J1/C |
J1/D |
J1/E |
J1/F |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ6 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
DMA CONFIGURATION | ||||||
|
DMA |
J2/A |
J2/B |
J2/C |
J3/A |
J3/B |
J3/C |
|
1 |
Closed |
Open |
Open |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
Open |
Closed |
Open |
|
3 |
Open |
Open |
Closed |
Open |
Open |
Closed |
|
ADDRESS SELECT | |||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
318h |
Off |
Off |
On |
On |
On |
Off |
Off |
Off |
|
210h |
Off |
On |
On |
On |
On |
Off |
On |
Off | |
|
360h |
Off |
Off |
On |
Off |
Off |
On |
On |
Off | |
