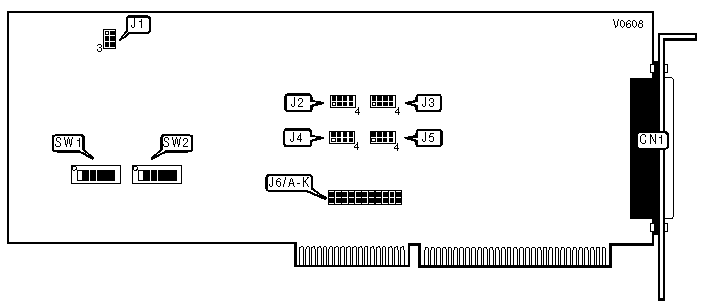

QUATECH, INC.
QS-200D/DS, QS-300D/DS
|
Card Type |
Serial controller |
|
Chipset/Controller |
16450/16550 UART |
|
I/O Options |
Serial ports (4) |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |
|
Purpose |
Location |
|
Serial ports (4) connector - DB-37 |
CN1 |
|
Note: CN1 can be converted to four DB-25 serial ports via a proprietary converter cable. | |
|
CLOCK SPEED | ||
|
MHz |
J1 | |
| » |
1.8432MHz |
pins 1 & 2, 4 & 5, 3 & 6 closed |
|
3.6864MHz |
pins 2 & 3, 4 & 5 closed | |
|
9.216MHz |
pins 1 & 2, 5 & 6 closed | |
|
18.432MHz |
pins 2 & 5 closed | |
|
SERIAL PORT 1 REQUEST TO SEND (RTS)/CLEAR TO SEND (CTS) MODE | ||
|
Setting |
J2 | |
| » |
Loopback RTS to CTS |
pins 1 & 5 closed |
|
RTS transmit on AUXOUT/CTS receive on AUXIN |
pins 1 & 2, 5 & 6 closed | |
|
SERIAL PORT 2 RTS/CTS MODE | ||
|
Setting |
J3 | |
| » |
Loopback RTS to CTS |
pins 1 & 5 closed |
|
RTS transmit on AUXOUT/CTS receive on AUXIN |
pins 1 & 2, 5 & 6 closed | |
|
SERIAL PORT 3 RTS/CTS MODE | ||
|
Setting |
J4 | |
| » |
Loopback RTS to CTS |
pins 1 & 5 closed |
|
RTS transmit on AUXOUT/CTS receive on AUXIN |
pins 1 & 2, 5 & 6 closed | |
|
SERIAL PORT 4 RTS/CTS MODE | ||
|
Setting |
J5 | |
| » |
Loopback RTS to CTS |
pins 1 & 5 closed |
|
RTS transmit on AUXOUT/CTS receive on AUXIN |
pins 1 & 2, 5 & 6 closed | |
|
SERIAL PORT 1 RCLK MODE | ||
|
Setting |
J2 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Receive RCLK on AUXIN |
pins 2 & 3 closed | |
|
SERIAL PORT 2 RCLK MODE | ||
|
Setting |
J3 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Receive RCLK on AUXIN |
pins 2 & 3 closed | |
|
SERIAL PORT 3 RCLK MODE | ||
|
Setting |
J4 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Receive RCLK on AUXIN |
pins 2 & 3 closed | |
|
SERIAL PORT 4 RCLK MODE | ||
|
Setting |
J5 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Receive RCLK on AUXIN |
pins 2 & 3 closed | |
|
SERIAL PORT 1 XCLK MODE | ||
|
Setting |
J2 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Transmit XCLK on AUXOUT |
pins 6 & 7 closed | |
|
SERIAL PORT 2 XCLK MODE | ||
|
Setting |
J3 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Transmit XCLK on AUXOUT |
pins 6 & 7 closed | |
|
SERIAL PORT 3 XCLK MODE | ||
|
Setting |
J4 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Transmit XCLK on AUXOUT |
pins 6 & 7 closed | |
|
SERIAL PORT 4 XCLK MODE | ||
|
Setting |
J5 | |
| » |
Loopback XCLK to RCLK |
pins 3 & 7 closed |
|
Transmit XCLK on AUXOUT |
pins 6 & 7 closed | |
|
SERIAL PORT 1 AUXIN/AUXOUT LOOPBACK | ||
|
Setting |
J2 | |
| » |
AUXIN/AUXOUT loopback enabled |
pins 2 & 6 closed |
|
AUXIN/AUXOUT loopback disabled |
pins 2 & 6 open | |
|
SERIAL PORT 2 AUXIN/AUXOUT LOOPBACK | ||
|
Setting |
J3 | |
| » |
AUXIN/AUXOUT loopback enabled |
pins 2 & 6 closed |
|
AUXIN/AUXOUT loopback disabled |
pins 2 & 6 open | |
|
SERIAL PORT 3 AUXIN/AUXOUT LOOPBACK | ||
|
Setting |
J4 | |
| » |
AUXIN/AUXOUT loopback enabled |
pins 2 & 6 closed |
|
AUXIN/AUXOUT loopback disabled |
pins 2 & 6 open | |
|
SERIAL PORT 4 AUXIN/AUXOUT LOOPBACK | ||
|
Setting |
J5 | |
| » |
AUXIN/AUXOUT loopback enabled |
pins 2 & 6 closed |
|
AUXIN/AUXOUT loopback disabled |
pins 2 & 6 open | |
|
SERIAL PORT 1 HALF/FULL DUPLEX SELECTION | ||
|
Setting |
J2 | |
| » |
Full-duplex mode enabled |
pins 4 & 8 open |
|
Half-duplex mode enabled |
pins 4 & 8 closed | |
|
SERIAL PORT 2 HALF/FULL DUPLEX SELECTION | ||
|
Setting |
J3 | |
| » |
Full-duplex mode enabled |
pins 4 & 8 open |
|
Half-duplex mode enabled |
pins 4 & 8 closed | |
|
SERIAL PORT 3 HALF/FULL DUPLEX SELECTION | ||
|
Setting |
J4 | |
| » |
Full-duplex mode enabled |
pins 4 & 8 open |
|
Half-duplex mode enabled |
pins 4 & 8 closed | |
|
SERIAL PORT 4 HALF/FULL DUPLEX SELECTION | ||
|
Setting |
J5 | |
| » |
Full-duplex mode enabled |
pins 4 & 8 open |
|
Half-duplex mode enabled |
pins 4 & 8 closed | |
|
INTERRUPT SELECTION - J6 | ||||||||||||
|
IRQ |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K | |
| » |
IRQ3 |
open |
closed |
open |
open |
open |
open |
open |
open |
open |
open |
open |
|
IRQ2 |
closed |
open |
open |
open |
open |
open |
open |
open |
open |
open |
open | |
|
IRQ4 |
open |
open |
closed |
open |
open |
open |
open |
open |
open |
open |
open | |
|
IRQ5 |
open |
open |
open |
closed |
open |
open |
open |
open |
open |
open |
open | |
|
IRQ6 |
open |
open |
open |
open |
closed |
open |
open |
open |
open |
open |
open | |
|
IRQ7 |
open |
open |
open |
open |
open |
closed |
open |
open |
open |
open |
open | |
|
IRQ10 |
open |
open |
open |
open |
open |
open |
closed |
open |
open |
open |
open | |
|
IRQ11 |
open |
open |
open |
open |
open |
open |
open |
closed |
open |
open |
open | |
|
IRQ12 |
open |
open |
open |
open |
open |
open |
open |
open |
closed |
open |
open | |
|
IRQ14 |
open |
open |
open |
open |
open |
open |
open |
open |
open |
closed |
open | |
|
IRQ15 |
open |
open |
open |
open |
open |
open |
open |
open |
open |
open |
closed | |
|
Note: All ports share the same IRQ. | ||||||||||||
|
I/O ADDRESS CONFIGURATION | ||||
|
Base Address |
SW1 |
SW2 | ||
| » |
300h |
1, 2, 3, 4, 5 & 6 on |
3, 4 & 5 on | |
|
54A0h |
1, 3 & 5 on |
1, 2 & 4 on | ||
|
Note (1): The address range for the QS-200D/300D is from 0 to FFFFh. The switches are a binary representation of the addresses. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW1/1=8, SW1/2=4, SW1/3=2, SW1/4=1, SW1/5=8, SW1/6=4, SW2/1=2, SW2/2=1, SW2/3=8, SW2/4=4, SW2/5=2. The QS-200D/300D requires 32 consecutive address locations for all four serial ports. Note (2): The base address selected above is for Port 1. To obtain the addresses for the other ports, add to the Port 1 address the following numbers: Port 2 address = Port 1 address + 8 Port 3 address = Port 1 address + 16 Port 4 address = Port 1 address + 24 | ||||
|
INTERRUPT STATUS REGISTER | ||
|
Setting |
SW2/6 | |
| » |
Scratchpad register enabled |
Off |
|
Interrupt status register enabled |
On | |
