QUATECH, INC.
DCL-624
|
Card Type |
Serial controller |
|
Chipset/Controller |
8250 UART |
|
I/O Options |
Serial ports (2) |
|
Maximum DRAM |
N/A |
|

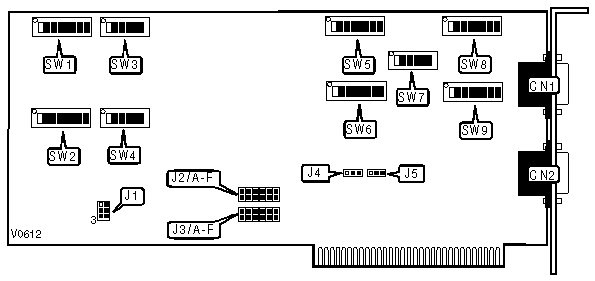

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 - DB-9 |
CN1 |
Serial port 2 - DB-9 |
CN2 |
|
INPUT CLOCK CONFIGURATION | ||
|
MHz |
J1 | |
| » |
1.8432MHz |
pins 1 & 2, 3 & 6, 4 & 5 |
|
3.6864MHz |
pins 1 & 2, 4 & 5 closed | |
|
9.216MHz |
pins 2 & 3, 4 & 5 closed | |
|
18.432MHz |
pins 2 & 5 closed | |
|
PORT 1 INTERRUPT SELECT - J2 | |||||||
|
IRQ |
Jumper A |
Jumper B |
Jumper C |
Jumper D |
Jumper E |
Jumper F | |
| » |
IRQ4 |
open |
open |
closed |
open |
open |
open |
|
IRQ2 |
closed |
open |
open |
open |
open |
open | |
|
IRQ3 |
open |
closed |
open |
open |
open |
open | |
|
IRQ5 |
open |
open |
open |
closed |
open |
open | |
|
IRQ6 |
open |
open |
open |
open |
closed |
open | |
|
IRQ7 |
open |
open |
open |
open |
open |
closed | |
|
PORT 2 INTERRUPT SELECT - J3 | |||||||
|
IRQ |
Jumper A |
Jumper B |
Jumper C |
Jumper D |
Jumper E |
Jumper F | |
| » |
IRQ3 |
open |
closed |
open |
open |
open |
open |
|
IRQ2 |
closed |
open |
open |
open |
open |
open | |
|
INTERRUPT SELECT - J3 | ||||||
|
IRQ |
Jumper A |
Jumper B |
Jumper C |
Jumper D |
Jumper E |
Jumper F |
|
IRQ4 |
open |
open |
closed |
open |
open |
open |
|
IRQ5 |
open |
open |
open |
closed |
open |
open |
|
IRQ6 |
open |
open |
open |
open |
closed |
open |
|
IRQ7 |
open |
open |
open |
open |
open |
closed |
|
POWER SUPPLY SELECT | |||
|
Setting |
J4 |
J5 | |
| » |
Computer power supply |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
Isolated power supply |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
PORT 1 I/O ADDRESS CONFIGURATION | |||
|
Base Address |
SW1 |
SW3 | |
| » |
3F8h |
1, 2, 3, 4, 5 & 6 on |
6 on |
| 3220h |
1, 2, 5, 6 & 8 on |
1, 2, 4, 5 & 6 on | |
|
Note:The address range for the DCL-624 is from 0 to FFFFh. The switches are a binary representation of the addresses. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW1/1=8, SW1/2=4, SW1/3=2, SW1/4=1, SW1/5=8, SW1/6=4, SW1/7=2, SW1/8=1, SW3/1=8, SW3/2=4, SW3/3=2, SW3/4=1, SW3/5=8. Port 1 requires 8 consecutive address locations. | |||
|
PORT 2 I/O ADDRESS CONFIGURATION | |||
|
Base Address |
SW2 |
SW4 | |
| » |
2F8h |
1, 3, 4, 5, 6 & 8 on |
6 on |
|
3220h |
1, 2, 5, 6 & 8 on |
1, 2, 4, 5 & 6 on | |
|
Note:The address range for the DCL-624 is from 0 to FFFFh. The switches are a binary representation of the addresses. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW2/1=8, SW2/2=4, SW2/3=2, SW2/4=1, SW2/5=8, SW2/6=4, SW2/7=2, SW2/8=1, SW4/1=8, SW4/2=4, SW4/3=2, SW4/4=1, SW4/5=8. Port 2 requires 8 consecutive address locations. | |||
|
PORT 1 ENABLE/DISABLE | ||
|
Setting |
SW3/6 | |
| » |
Enabled |
on |
|
Disabled |
off | |
|
PORT 2 ENABLE/DISABLE | ||
|
Setting |
SW4/6 | |
| » |
Enabled |
on |
|
Disabled |
off | |
|
PORT 1 TRANSMISSION OPTIONS - SW5 | |||||||||
|
Setting |
SW5/1 |
SW5/2 |
SW5/3 |
SW5/4 |
SW5/5 |
SW5/6 |
SW5/7 |
SW5/8 | |
| » |
20mA Active Transmit |
off |
off |
on |
on |
on |
off |
off |
off |
|
30mA Active Transmit |
off |
off |
on |
on |
on |
on |
off |
off | |
|
60mA Active Transmit |
off |
off |
on |
on |
on |
on |
on |
off | |
|
Passive Transmit |
on |
on |
off |
off |
off |
off |
off |
off | |
|
PORT 2 TRANSMISSION OPTIONS - SW6 | |||||||||
|
Setting |
SW6/1 |
SW6/2 |
SW6/3 |
SW6/4 |
SW6/5 |
SW6/6 |
SW6/7 |
SW6/8 | |
| » |
20mA Active Transmit |
off |
off |
on |
on |
on |
off |
off |
off |
|
30mA Active Transmit |
off |
off |
on |
on |
on |
on |
off |
off | |
|
60mA Active Transmit |
off |
off |
on |
on |
on |
on |
on |
off | |
|
Passive Transmit |
on |
on |
off |
off |
off |
off |
off |
off | |
|
PORT 1 RECEIVE CIRCUIT CURRENT OPTIONS - SW7 | ||||
|
Setting |
SW7/1 |
SW7/2 |
SW7/3 | |
| » |
20mA |
on |
off |
off |
|
30mA |
off |
on |
off | |
|
60mA |
off |
off |
on | |
|
PORT 2 RECEIVE CIRCUIT CURRENT OPTIONS - SW7 | ||||
|
Setting |
SW7/4 |
SW7/5 |
SW7/6 | |
| » |
20mA |
on |
off |
off |
|
30mA |
off |
on |
off | |
|
60mA |
off |
off |
on | |
|
PORT 1 RECEIVE OPTIONS - SW8 | |||||||||
|
Setting |
SW8/1 |
SW8/2 |
SW8/3 |
SW8/4 |
SW8/5 |
SW8/6 |
SW8/7 |
SW8/8 | |
| » |
Passive Receive |
on |
on |
off |
off |
off |
off |
off |
off |
|
20mA Active Receive |
off |
off |
on |
on |
on |
off |
off |
off | |
|
30mA Active Receive |
off |
off |
on |
on |
on |
on |
off |
off | |
|
60mA Active Receive |
off |
off |
on |
on |
on |
on |
on |
off | |
|
PORT 2 RECEIVE OPTIONS - SW9 | |||||||||
|
Setting |
SW9/1 |
SW9/2 |
SW9/3 |
SW9/4 |
SW9/5 |
SW9/6 |
SW9/7 |
SW9/8 | |
| » |
Passive Receive |
on |
on |
off |
off |
off |
off |
off |
off |
|
20mA Active Receive |
off |
off |
on |
on |
on |
off |
off |
off | |
|
30mA Active Receive |
off |
off |
on |
on |
on |
on |
off |
off | |
|
60mA Active Receive |
off |
off |
on |
on |
on |
on |
on |
off | |
