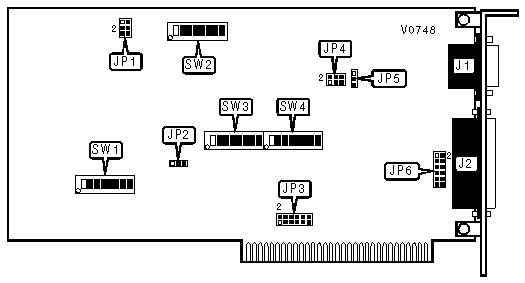

QUATECH, INC.
DS-225/DS-325
|
Card Type |
Serial interface |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Serial ports (2) |
|
Maximum Dram |
N/A |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
J1 |
Serial port 2 |
J2 |
|
INTERRUPT SELECTION | |
|
IRQ |
JP3 |
|
2 |
Pins 1 & 2 closed |
|
3 |
Pins 3 & 4 closed |
|
4 |
Pins 5 & 6 closed |
|
5 |
Pins 7 & 8 closed |
|
6 |
Pins 9 & 10 closed |
|
7 |
Pins 11 & 12 closed |
|
SERIAL INTERRUPT SHARING SELECTION | |
|
Setting |
JP2 |
|
Non-sharable |
Pins 1 & 2 closed |
|
Sharable |
Pins 2 & 3 closed |
|
RS-422/485 DRIVER POWER-UP STATE SELECTION | |
|
State |
JP5 |
|
Enabled |
Pins 2 & 3 connected |
|
Disabled |
Pins 1 & 2 connected |
|
ADDRESS SELECTION | ||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
000h |
On |
On |
On |
On |
On |
On |
On |
On |
|
008h |
On |
On |
On |
On |
On |
On |
On |
Off |
|
010h |
On |
On |
On |
On |
On |
On |
Off |
On |
|
018h |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
2E8h (COM4:) |
On |
Off |
On |
Off |
Off |
Off |
On |
Off |
|
2F8h (COM2:) |
On |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
3E8h (COM3:) |
On |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
3F8h (COM1:) |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
7E0h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
7E8h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
7F0h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
7F8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: A total of 255 memory base address settings are available. The switches are a binary representation of the decimal addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 8=1, 7=2, 6=4, 5=8, 4=16, 3=32, 2=64, 1=128. Turn off the switches and add the off switches to obtain the correct memory base address. (On=0, Off=1) | ||||||||
|
DTE/DCE SELECTION | |
|
JP6 | |
|
DTE |
DCE |
|
|
|
|
INPUT CLOCK DIVISOR SELECT | |||
|
JP1 | |||
|
10 (Default) |
5 |
2 |
1 |
|
|
|
|
|
|
PROTOCOL SELECTION | ||||||||
|
Protocol |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
Software select |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
RS-232 |
On |
On |
On |
Off |
Off |
On |
Off |
Off |
|
RS-422/485 |
On |
On |
Off |
On |
Off |
Off |
On |
Off |
|
Current loop |
On |
On |
Off |
Off |
On |
Off |
Off |
On |
|
CURRENT LOOP TRANSMIT MODE SELECTION | ||||||||
|
Mode |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
SW3/5 |
SW3/6 |
SW3/7 |
SW3/8 |
|
Passive |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
20mA active |
Off |
Off |
On |
On |
On |
Off |
Off |
Off |
|
30mA active |
Off |
Off |
On |
On |
On |
On |
Off |
Off |
|
60mA active |
On |
On |
Off |
Off |
Off |
Off |
Off |
On |
|
CURRENT LOOP RECEIVE MODE SELECTION | |||||||||
|
Mode |
SW4/1 |
SW4/2 |
SW4/3 |
SW4/4 |
SW4/5 |
SW4/6 |
SW4/7 |
SW4/8 |
JP4 |
|
Passive |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Open |
|
20mA active |
Off |
Off |
On |
On |
On |
Off |
Off |
Off |
1 & 2 closed |
|
30mA active |
Off |
Off |
On |
On |
On |
On |
Off |
Off |
3 & 4 closed |
|
60mA active |
On |
On |
Off |
Off |
Off |
Off |
Off |
On |
5 & 6 closed |
