ROLAND CORPORATION
MPU-401AT
|
Card Type |
MIDI interface |
|
Chipset Controller |
N/A |
|
I/O Options |
Headphone jack, Minicircular connector (2), Stereo out jack (2) |
|
Maximum DRAM |
N/A |
|

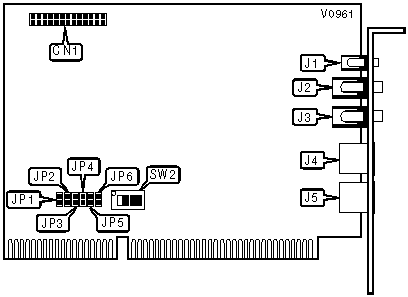

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Sound Canvas Daughterboard connector |
CN1 |
Stereo out jack |
J3 |
|
Headphone jack |
J1 |
Minicircular connector |
J4 |
|
Stereo out jack |
J2 |
Minicircular connector |
J5 |
|
BASE I/O ADDRESS SELECTION | |||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 | |
| » |
330h |
Off |
Off |
On |
On |
|
300h |
Off |
Off |
Off |
Off | |
|
320h |
Off |
Off |
Off |
On | |
|
332h |
On |
Off |
On |
On | |
|
334h |
On |
On |
On |
Off | |
|
336h |
On |
On |
On |
On | |
|
INTERRUPT CONFIGURATION | |||||||
|
IRQ |
JP1 |
JP2 |
JP3 |
JP4 |
JP5 |
JP6 | |
| » |
2/9 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
3 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
4 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
6 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
7 |
Closed |
Open |
Open |
Open |
Open |
Open | |
