Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interface, Game/MIDI port, Line in (2), Microphone jack, Speaker/Line out
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

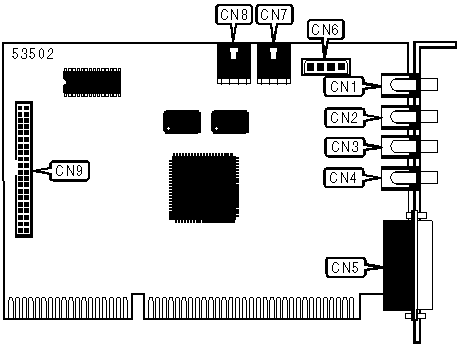

CONNECTIONS
Function	Label	Function	Label
Auxiliary line in	CN1	CD-Audio in (Panasonic)	CN6
Line in	CN2	CD-Audio in (IDE)	CN7
Microphone in	CN3	CD-Audio in (IDE)	CN8
Speaker/Line out	CN4	IDE CD-ROM interface	CN9
Game/MIDI connector	CN5

USER CONFIGURABLE SETTINGS

Note: All settings are software configurable.
