Card Type	Multi-I/O
Chipset	Unidentified
I/O Options	Parallel port, serial port
Data Bus	8-bit ISA
Card Size	Full height, one-third length

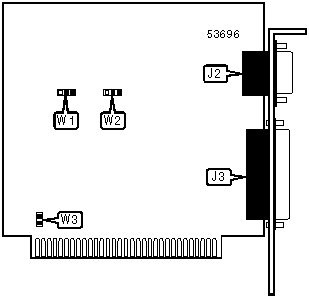

CONNECTIONS
Function	Label	Function	Label
Serial port	J2	Parallel port	J3

USER CONFIGURABLE SETTINGS
Setting	Label	Position
Serial port address is 3F8h (COM1:)	W1	Pins 1 & 2 closed
Serial port address is 2F8h (COM2:)	W1	Pins 2 & 3 closed
Parallel port address is 378h	W2	Pins 1 & 2 closed
Parallel port address is 278h	W2	Pins 2 & 3 closed
Internal oscillator enabled	W3	Closed
Internal oscillator disabled	W3	Open
