Card Type	Serial terminal emulator
Processor	8088
Processor Speed	Unidentified
Chipset	Zilog Z8530
Maximum Onboard Memory	24KB SRAM
I/O Options	Serial port
Data Bus	8-bit ISA
Card Size	Full height, full length

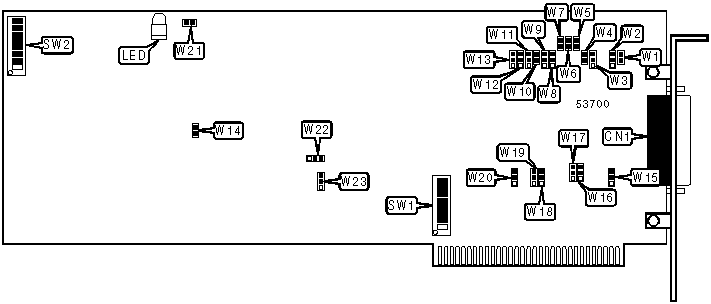

CONNECTIONS
Function	Label
X.24 or V.24 serial port	CN1
Note:Using the jumpers on the board specialized configurations for the serial port may be used.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	24KB of SRAM installed on card	SW1/4	On
	16KB of SRAM installed on card	SW1/4	Off
»	Factory configured - do not alter	SW2/1	Off
»	Factory configured - do not alter	SW2/2	Off
»	Factory configured - do not alter	SW2/8	On
	Pin 14 of serial port connected to X.24 TB signal	W1	Closed
	Pin 14 of serial port has no function	W1	Open
	Pin 16 of serial port connected to X.24 RB signal	W4	Closed
	Pin 16 of serial port has no function	W4	Open
	Normal delay on V.24 signal 107	W5	Closed
	Extra delay on V.24 signal 107	W5	Open
	Normal delay on V.24 signal 104	W6	Closed
	Extra delay on V.24 signal 104	W6	Open
	Normal delay on V.24 signal 114	W7	Closed
	Extra delay on V.24 signal 114	W7	Open

USER CONFIGURABLE SETTINGS (CON'T)
Setting		Label	Position
	Pin 19 of serial port connected to X.24 BB signal	W10	Closed
	Pin 19 of serial port has no function	W10	Open
	Signal Element used as timer	W11	Pins 2 & 3 closed
	Internal clock source used as timer	W11	Pins 1 & 2 closed
	Internal clock source used for receive clock	W12	Pins 1 & 2 closed
	External clock source used for receive clock	W12	Pins 2 & 3 closed
	Internal clock source used for transmit clock	W13	Pins 2 & 3 closed
	External clock source used for transmit clock	W13	Pins 1 & 2 closed
»	Processor clock enabled	W14	Closed
	Processor clock disabled	W14	Open
»	Peripheral clock enabled	W21	Closed
	Peripheral clock disabled	W21	Open

BASE I/O ADDRESS SELECTION
Setting	SW1/1	SW1/2	SW1/3	W22	W23
80000h	Off	Off	Off	Pins 2 & 3 closed	Pins 2 & 3 closed
84000h	Off	Off	On	Pins 2 & 3 closed	Pins 2 & 3 closed
88000h	Off	On	Off	Pins 2 & 3 closed	Pins 2 & 3 closed
8C000h	Off	On	On	Pins 2 & 3 closed	Pins 2 & 3 closed
90000h	On	Off	Off	Pins 2 & 3 closed	Pins 2 & 3 closed
94000h	On	Off	On	Pins 2 & 3 closed	Pins 2 & 3 closed
98000h	On	On	Off	Pins 2 & 3 closed	Pins 2 & 3 closed
9C000h	On	On	On	Pins 2 & 3 closed	Pins 2 & 3 closed
A0000h	Off	Off	Off	Pins 2 & 3 closed	Pins 1 & 2 closed
A4000h	Off	Off	On	Pins 2 & 3 closed	Pins 1 & 2 closed
A8000h	Off	On	Off	Pins 2 & 3 closed	Pins 1 & 2 closed
AC000h	Off	On	On	Pins 2 & 3 closed	Pins 1 & 2 closed
B0000h	On	Off	Off	Pins 2 & 3 closed	Pins 1 & 2 closed
B4000h	On	Off	On	Pins 2 & 3 closed	Pins 1 & 2 closed
B8000h	On	On	Off	Pins 2 & 3 closed	Pins 1 & 2 closed
BC000h	On	On	On	Pins 2 & 3 closed	Pins 1 & 2 closed
C0000h	Off	Off	Off	Pins 1 & 2 closed	Pins 2 & 3 closed
C4000h	Off	Off	On	Pins 1 & 2 closed	Pins 2 & 3 closed
C8000h	Off	On	Off	Pins 1 & 2 closed	Pins 2 & 3 closed
CC000h	Off	On	On	Pins 1 & 2 closed	Pins 2 & 3 closed
D0000h	On	Off	Off	Pins 1 & 2 closed	Pins 2 & 3 closed
D4000h	On	Off	On	Pins 1 & 2 closed	Pins 2 & 3 closed
D8000h	On	On	Off	Pins 1 & 2 closed	Pins 2 & 3 closed
DC000h	On	On	On	Pins 1 & 2 closed	Pins 2 & 3 closed
E0000h	Off	Off	Off	Pins 1 & 2 closed	Pins 1 & 2 closed
E4000h	Off	Off	On	Pins 1 & 2 closed	Pins 1 & 2 closed
E8000h	Off	On	Off	Pins 1 & 2 closed	Pins 1 & 2 closed
EC000h	Off	On	On	Pins 1 & 2 closed	Pins 1 & 2 closed

BASE I/O ADDRESS SELECTION (CON'T)
Setting	SW1/1	SW1/2	SW1/3	W22	W23
F0000h	On	Off	Off	Pins 1 & 2 closed	Pins 1 & 2 closed
F4000h	On	Off	On	Pins 1 & 2 closed	Pins 1 & 2 closed
F8000h	On	On	Off	Pins 1 & 2 closed	Pins 1 & 2 closed
FC000h	On	On	On	Pins 1 & 2 closed	Pins 1 & 2 closed

INTERRUPT SELECTION
Setting	SW1/5	SW1/6	SW1/7	SW1/8
2	On	On	On	Off
3	On	On	Off	On
5	On	Off	On	On
7	Off	On	On	On

LINK ADDRESS SELECTION
Setting	SW2/3	SW2/4	SW2/5	SW2/6	SW2/7
1	Off	Off	Off	Off	Off
3	Off	Off	Off	Off	On
5	Off	Off	Off	On	Off
7	Off	Off	Off	On	On
9	Off	Off	On	Off	Off
55	On	On	Off	On	On
57	On	On	On	Off	Off
59	On	On	On	Off	On
61	On	On	On	On	Off
63	On	On	On	On	On
Note: A total of 32 link address settings are available. The switches are a binary representation of the decimal link addresses. SW2/3 is the Most Significant Bit and switch SW2/7 is the Least Significant Bit. The switches have the following decimal values: SW2/7=2, SW2/6=4, SW2/5=8, SW2/4=16, SW2/3=32. Turn on the switches and add the values of the switches that are on to obtain the correct link address. (Off=0, On=1)

PIN 2 CONFIGURATION
Setting	W3
X.24 TA signal	Pins 2 & 3 closed
V.24 103 signal	Pins 1 & 2 closed
No function	Open

PIN 3 CONFIGURATION
Setting	W16
X.24 CA signal	Pins 2 & 3 closed
V.24 104 signal	Pins 1 & 2 closed
No function	Open

PIN 4 CONFIGURATION
Setting	W19
X.24 RA signal	Pins 2 & 3 closed
V.24 105 signal	Pins 1 & 2 closed
No function	Open

PIN 5 CONFIGURATION
Setting	W15
X.24 IA signal	Pins 2 & 3 closed
V.24 106 signal	Pins 1 & 2 closed
No function	Open

PIN 6 CONFIGURATION
Setting	W18
X.24 SA signal	Pins 2 & 3 closed
V.24 107 signal	Pins 1 & 2 closed
No function	Open

PIN 7 CONFIGURATION
Setting	W20
X.24 BA signal	Pins 2 & 3 closed
V.24 102 signal	Pins 1 & 2 closed
No function	Open

PIN 8 CONFIGURATION
Setting	W17
X.24 G signal	Pins 2 & 3 closed
V.24 109 signal	Pins 1 & 2 closed
No function	Open

PIN 15 CONFIGURATION
Setting	W2
X.24 CB signal	Pins 2 & 3 closed
V.24 114 signal	Pins 1 & 2 closed
No function	Open

PIN 17 CONFIGURATION
Setting	W8
X.24 IB signal	Pins 2 & 3 closed
V.24 115 signal	Pins 1 & 2 closed
No function	Open

PIN 18 CONFIGURATION
Setting	W9
X.24 SB signal	Pins 2 & 3 closed
V.24 141 signal	Pins 1 & 2 closed
No function	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED	Unidentified	On	Self-test is in progress or self-test failed
LED	Unidentified	Off	Self-test passed
Note:The LED should go on when the board is first powered up. If the LED does not go off after a few moments, the self-test has failed.
