STALLION TECHNOLOGIES, INC.
ONBOARD 32
|
Card Type |
I/O controller |
|
Chipset/Controller |
Intel Corporation |
|
I/O Options |
(32) Parallel or (32) serial ports |
|
Maximum DRAM |
256KB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
EXP-28 module connector |
CN2 |
Multi-port panel connector |
CN4 |
|
EXP-28 module connector |
CN3 | ||
|

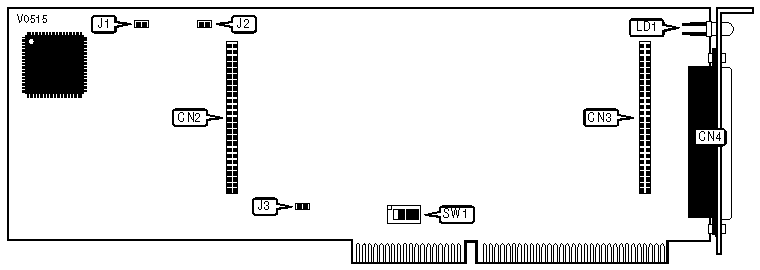

FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J1 |
N/A |
|
BUS SIZE | |
|
Setting |
J2 |
|
16-bit |
Closed |
|
8-bit |
Open |
|
CLOCK SPEED | |
|
Setting |
J2 |
|
Speed > 8MHz |
Closed |
|
Speed <= 8MHz |
Open |
|
MEMORY ADDRESS CONFIGURATION | ||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
200h |
On |
On |
On |
On |
|
0210h |
On |
On |
On |
Off |
|
220h |
On |
On |
Off |
On |
|
230h |
On |
On |
Off |
Off |
|
MEMORY ADDRESS CONFIGURATION | ||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
240h |
On |
Off |
On |
On |
|
250h |
On |
Off |
On |
Off |
|
260h |
On |
Off |
Off |
On |
|
270h |
On |
Off |
Off |
Off |
|
280h |
Off |
On |
On |
On |
|
290h |
Off |
On |
On |
Off |
|
2A0h |
Off |
On |
Off |
On |
|
2B0h |
Off |
On |
Off |
Off |
|
2C0h |
Off |
Off |
On |
On |
|
2D0h |
Off |
Off |
On |
Off |
|
2E0h |
Off |
Off |
Off |
On |
|
2F0h |
Off |
Off |
Off |
Off |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The EXP-28 module is required for 32-port operation. Other piggy-back modules can be used for less total ports. |
