STAR GATE TECHNOLOGIES, INC.
ACL
|
Card Type |
Serial card |
|
Chipset Controller |
N/A |
|
I/O Options |
Serial ports(8 serial ports on external panel) |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |
|
Purpose |
Location |
|

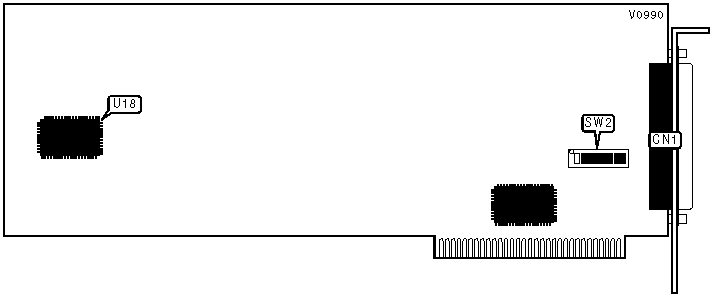

62-pin serial interface connector |
CN1 |
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
SW2/1 |
SW2/8 | |
| » |
200h |
Off |
Off |
|
300h |
On |
Off | |
|
600h |
Off |
On | |
|
700h |
On |
On | |
|
INTERRUTPT SELECTION | ||||||
|
IRQ |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
|
2 |
On |
Off |
Off |
Off |
Off |
Off |
|
3 |
Off |
On |
Off |
Off |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
Off |
Off |
|
5 |
Off |
Off |
Off |
On |
Off |
Off |
|
6 |
Off |
Off |
Off |
Off |
On |
Off |
|
7 |
Off |
Off |
Off |
Off |
Off |
On |
|
PAL CHIPE TYPE | ||
|
U18 |
Local RAM Installed |
Dual port RAM Installed |
|
800323 |
8K |
16K |
|
800325 |
8K |
64K |
|
800324 |
32K |
16K |
|
800321 |
32K |
64K |
