SUPERSEU+

SBE, INC.

SUPERSEU+

Card Type

Serial

Chip Set

Unidentified

I/O Options

Serial ports (64)

Data Bus

EISA

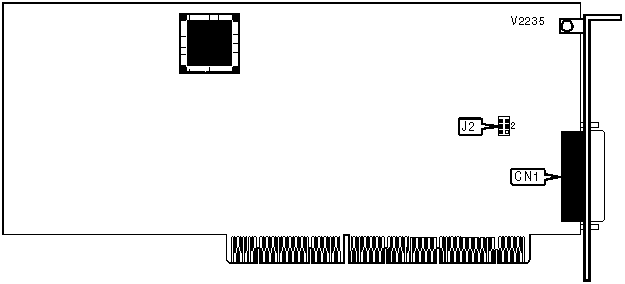

CONNECTIONS

Function

Label

Serial ports via DB-25 connector

CN1

Note:Standard DB-25 serial ports are provided on one or more 16-port external expansion modules.

POWER TRANSMIT

Setting

J2

»
Board sends power to expansion modules

Pins 1 & 2, 4 & 5 closed

Board does not send power to expansion modules

Pins 2 & 3, 5 & 6 closed

Note:If more than one expansion module is connected to the board, external power must be supplied. Board power may still be used in addition.

Card Type	Serial
Chip Set	Unidentified
I/O Options	Serial ports (64)
Data Bus	EISA

CONNECTIONS
Function	Label
Serial ports via DB-25 connector	CN1
Note:Standard DB-25 serial ports are provided on one or more 16-port external expansion modules.

POWER TRANSMIT
Setting		J2
»	Board sends power to expansion modules	Pins 1 & 2, 4 & 5 closed
	Board does not send power to expansion modules	Pins 2 & 3, 5 & 6 closed
Note:If more than one expansion module is connected to the board, external power must be supplied. Board power may still be used in addition.
