Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interface, Game/MIDI port, Microphone (2), Speaker/Line out, Line in (2), CD Audio (2)
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

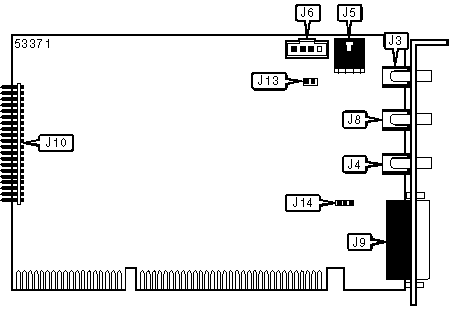

CONNECTIONS
Function	Label	Function	Label
Line in	J3	Game/MIDI connector	J9
Microphone jack	J4	CD-ROM interface (unidentified)	J10
Audio in CD-ROM (unidentified)	J5	Line in (internal)	J13
Audio in CD-ROM (unidentified)	J6	Microphone (internal)	J14
Speaker/Line out	J8
