Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	Line in, microphone in, speaker out , game/MIDI port, audio in CD-ROM (2), CD-ROM interface-IDE, voice modem connector
Data Bus	16-bit ISA

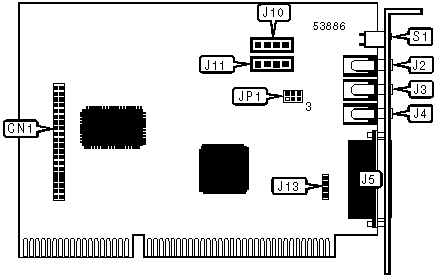

CONNECTIONS
Function	Label	Function	Label
CD-ROM interface - IDE	CN1	Game/MIDI port	J5
Speaker out	J2	Audio in - CD-ROM	J10
Line in	J3	Audio in - CD-ROM	J11
Microphone in	J4	Voice modem connector	J13

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Speaker out enabled	JP1	Pins 2 & 3, 5 & 6 closed
	Line out enabled	JP1	Pins 1 & 2, 4 & 5 closed
»	3D disabled	S1	Off
	3D enabled	S1	On
