Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	CD-ROM interface (3), audio in - CD-ROM (3), line out, line in
Data Bus	8-bit ISA
Card Size	Half-length, half-height card

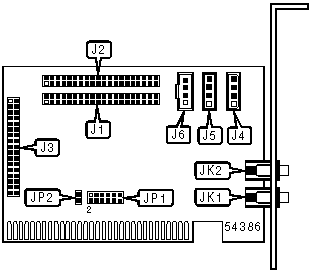

CONNECTIONS
Function	Label	Function	Label
CD-ROM interface (Panasonic)	J1	Audio in - CD-ROM	J5
CD-ROM interface (Mitsumi)	J2	Audio in - CD-ROM	J6
CD-ROM interface (Sony)	J3	Line out	JK1
Audio in - CD-ROM	J4	Line in	JK2

DMA CHANNEL SELECTION
Channel	JP1
1	Pins 1 & 3 closed
3	Pins2 & 4 closed
Note: Used for Mitsumi interface only.

BASE I/O ADRESS SELECTION
Sony	Mitsumi	Panasonic	JP2
320h	300h	310h	Closed
360h	340h	350h	Open

IRQ INTERRUPT SELECTION
IRQ	JP1
IRQ3	Pins 7 & 8 closed
IRQ4	Pins 9 & 10 closed
IRQ5	Pins 11 & 12 closed
Note: Used for Mitsumi interface only.
