TECMAR
WANGTEK 30475
|
Card Type |
Serial controller |
|
Processor |
None |
|
Data Bus |
8-bit ISA |
|

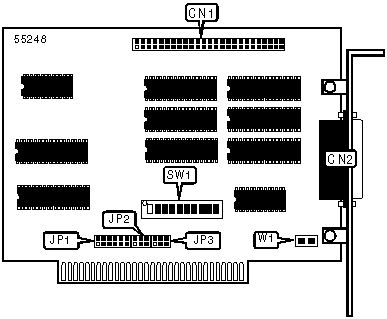

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Drive connector - internal |
CN1 |
Ground isolation |
W1 |
|
Drive connector - external |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
External tape drive select |
SW1/10 |
On |
|
Internal tape drive select |
SW1/10 |
Off |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||
|
IRQ |
JP1 | |
|
2 |
Pins 1 & 2 closed | |
| » |
3 |
Pins 3 & 4 closed |
|
4 |
Pins 5 & 6 closed | |
|
5 |
Pins 7 & 8 closed | |
|
6 |
Pins 9 & 10 closed | |
|
7 |
Pins 11 & 12 closed | |
|
DMA CHANNEL SELECTION | |||
|
DMA |
JP2 |
JP3 | |
| » |
1 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
2 |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
3 |
Pins 3 & 4 closed |
Pins 3 & 4 closed | |
|
BASE I/O ADDRESS SELECTION | ||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 | |
|
000h |
on |
on |
on |
on |
on | |
|
288h |
on |
on |
off |
on |
on | |
|
2ACh |
on |
off |
off |
on |
off | |
| » |
300h |
on |
on |
on |
on |
on |
|
338h |
on |
on |
off |
off |
off | |
|
BASE I/O ADDRESS SELECTION (CONT’) | ||||
|
Setting |
SW1/6 |
SW1/7 |
SW1/8 |
SW1/9 |
|
000h |
on |
on |
on |
on |
|
288h |
on |
off |
on |
on |
|
2ACh |
on |
off |
on |
on |
|
300h |
on |
on |
off |
off |
|
338h |
on |
on |
off |
off |
