Category	Graphics/printer card
Video Types Supported	Monochrome
Video Processor	N/A
Highest Resolution Supported	640 x 200
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

CONNECTIONS

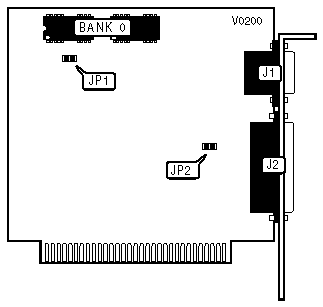

Purpose	Location	Purpose	Location
15-pin analog video port	J1	Parallel port	J2

PARALLEL PORT CONFIGURATION
Setting		J2
»	Enabled	Closed
	Disabled	Open

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP1	N/A
