Card Type	Multi I/O card
Chipset/Controller	N/A
I/O Options	Game port, parallel port, serial ports (2)
Maximum DRAM	N/A

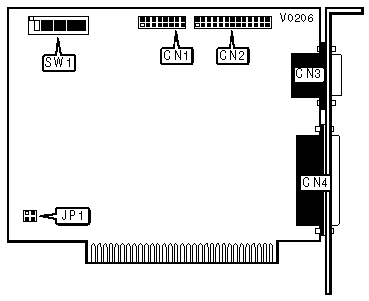

CONNECTIONS
Purpose	Location	Purpose	Location
Game port	CN1	Serial port (COM1)	CN3
Serial port (COM2)	CN2	Parallel port	CN4

SERIAL PORT CONFIGURATION
Port 1 (CN3)		Port 2 (CN2)	SW1/1	SW1/2	SW1/3	SW1/6	SW1/7	SW1/8
»	COM1	COM2	N/A	Off	On	Off	On	On
	COM1	Disabled	On	Off	Off	Off	On	Off
	COM2	Disabled	Off	On	Off	On	Off	Off
	Disabled	COM2	Off	Off	On	Off	Off	On
	Disabled	Disabled	Off	Off	Off	Off	Off	Off

PARALLEL PORT CONFIGURATION WITH MONOCHROME CARD INSTALLED
LPT		IRQ	JP1	SW1/4	SW1/5
»	2	5	Pins 1 & 2 closed	On	Off
	3	None	Open	Off	On
	Disabled	Disabled	Open	Off	Off
Note: The printer port on the Monochrome graphics adapter will be LPT1, if installed.

PARALLEL PORT CONFIGURATION WITH COLOR CARD INSTALLED
LPT		IRQ	JP1	SW1/4	SW1/5
»	1	7	Pins 1 & 2 closed	On	Off
	2	5	Pins 3 & 4 closed	Off	On
	Disabled	Disabled	Open	Off	Off
Note: The printer port on the Monochrome graphics adapter will be LPT1, if installed.
