Card Type	Floppy drive controller
Chipset/Controller	Intel Corporation
I/O Options	Floppy drive interface
Maximum DRAM	N/A

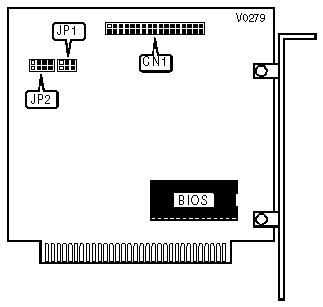

CONNECTIONS
Purpose	Location
Floppy drive interface	CN1

DRIVE TYPE SELECTION
	DRIVE A	DRIVE B
Type	JP2/1	JP2/2	JP2/3	JP2/4
360KB	Closed	Closed	Closed	Closed
1.2MB	Open	Closed	Open	Closed
720KB	Closed	Open	Closed	Open
1.44MB	Open	Open	Open	Open

BIOS ADDRESS SELECTION
Address	JP1/1	JP1/2	JP1/3
CA00h-CBFFh	Open	Open	Closed
CC00h-CDFFh	Open	Closed	Open
CE00h-CFFFh	Closed	Open	Open
