Card Type	Multi I/O
Chipset/Controller	Unidentified
I/O Options	Clock (location unknown), floppy drive interface, game port, parallel port, serial ports (2)
Maximum DRAM	N/A

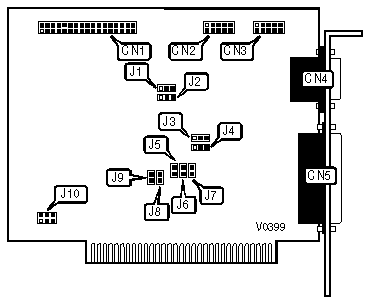

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive interface	CN1	Game port	CN4
Serial port 1	CN2	Parallel port	CN5
Serial port 2	CN3

PARALLEL PORT CONFIGURATION
LPT		J1	J2
»	LPT1	Pins 1 & 2 closed	Pins 2 & 3 closed
	LPT2	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	N/A	Pins 1 & 2 closed

SERIAL PORT CONFIGURATION
Port 1 (CN2)	Port 2 (CN3)	J6	J7
Enabled	Enabled	Open	Open
Enabled	Disabled	Closed	Open
Disabled	Enabled	Open	Closed
Disabled	Disabled	Closed	Closed

PRIMARY SERIAL PORT CONFIGURATION
Address		J3	J4
»	3F8h	Pins 1 & 2 closed	Pins 1 & 2 closed
	2F8h	Pins 2 & 3 closed	Pins 2 & 3 closed

FLOPPY DRIVE CONFIGURATION
Setting		J5	J8	J9
»	Enabled	Closed	Open	Closed
	Disabled	Open	Closed	Open

ROM ADDRESS SELECT
Address	J10
CA00h	Pins 1 & 2, 3 & 4 closed
CC00h	Pins 1 & 3, 2 & 4 closed
CE00h	Pins 1 & 2, 5 & 6 closed
