Card Type	Multi-I/O
Chipset/Controller	Unidentified
I/O Options	Parallel ports (2), serial ports (2)
Maximum DRAM	N/A

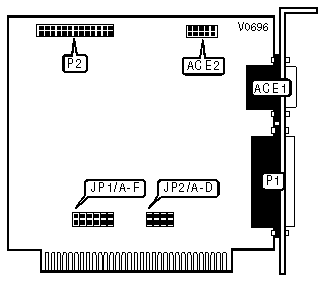

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port 1 - external	P1	Serial port 2 - internal	ACE2
Serial port 1 - external	ACE1	Parallel port 2 - internal	P2

SERIAL PORT 1 CONFIGURATION - JP1
COM/Address		Jumper A	Jumper C
»	COM1/3F8h	Closed	Open
	COM3/3E8h	Open	Closed
	Disabled	Open	Open

SERIAL PORT 2 CONFIGURATION - JP1
COM/Address		Jumper B	Jumper D
»	COM2/2F8	Closed	Open
	COM4/2E8h	Open	Closed
	Disabled	Open	Open

PARALLEL PORT 1 CONFIGURATION - JP1
LPT/Address/IRQ		Jumper E
»	LPT2/378h/IRQ7	Closed
	Disabled	Open

PARALLEL PORT 2 CONFIGURATION - JP1
LPT/Address/IRQ		Jumper F
»	LPT3/278h/IRQ5	Closed
	Disabled	Open

SERIAL PORT 1 INTERRUPT SELECT - JP2
IRQ	Jumper A	Jumper B
IRQ3	Closed	Open
IRQ4	Open	Closed
Disabled	Open	Open

SERIAL PORT 2 INTERRUPT SELECT - JP2
IRQ	Jumper C	Jumper D
IRQ3	Open	Closed
IRQ4	Closed	Open
Disabled	Open	Open

MISCELLANEOUS TECHNICAL NOTES

Serial ports 1 & 2 must have different IRQs selected.
