Card Type

Multi-I/O

Chipset/Controller

Unidentified

I/O Options

Parallel port, Serial ports (2)

Maximum DRAM

N/A

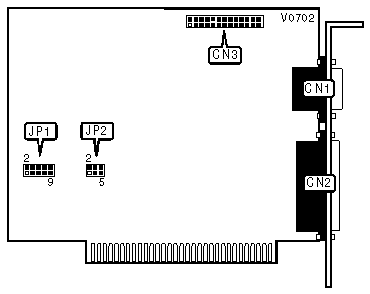

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1 - external

CN1

Serial port 2 - internal

CN3

Parallel port

CN2

SERIAL PORT 1 & 2 CONFIGURATIONS

PORT 1

PORT 2

JP1

» COM1/3F8h/IRQ4

COM2/2F8h/IRQ3

Pins 2 & 4, 6 & 8, 7 & 9 closed

COM2/2F8h/IRQ3

COM1/3F8h/IRQ4

Pins 1 & 3, 5 & 7, 8 & 10 closed

PARALLEL PORT CONFIGURATION

LPTAddress/IRQ

JP2

» LPT1/378h/IRQ5

Pins 1 & 3, 4 & 6 closed

LPT2/278h/IRQ7

Pins 2 & 4, 3 & 5 closed
