Card Type	Multi - I/O card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	Floppy drive interface, game port, parallel port, serial ports (2)
Data Bus	8-bit ISA

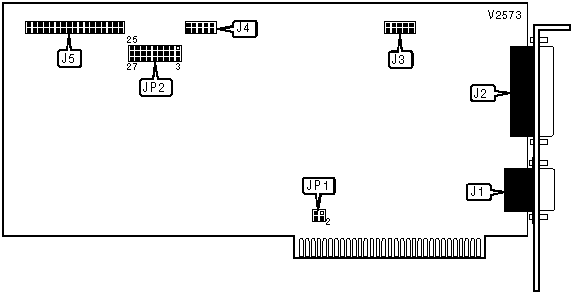

CONNECTIONS
Function	Label	Function	Label
Parallel port	J2	Serial port 2	J4
Game port	J1	Floppy drive interface connector	J5
Serial port 1	J3

USER CONFIGURABLE SETTINGS
Function	Label	Position
Interrupt level 2 selected	JP1	Pins 1 & 2 closed
Interrupt level 5 selected	JP1	Pins 3 & 4 closed
Parallel port enabled	JP2	Pins 2 & 3 closed
Parallel port disabled	JP2	Pins 1 & 2 closed
LPT1 enabled	JP2	Pins 5 & 6 closed
LPT2 enabled	JP2	Pins 4 & 5 closed
Select clock 2	JP2	Pins 8 & 9 closed
Select clock 1	JP2	Pins 7 & 8 closed
Serial port COM2 enabled	JP2	Pins 11 & 12 closed
Serial port COM2 disabled	JP2	Pins 10 & 11 closed
Floppy disk interface enabled	JP2	Pins 14 & 15 closed
Floppy disk interface disabled	JP2	Pins 13 & 14 closed
Factory configured - do not alter	JP2	Pins 16 - 24 closed
Serial port COM1 enabled	JP2	Pins 26 & 27 closed
Serial port COM1 disabled	JP2	Pins 25 & 26 closed
