Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interface(4), game/midi port, Line in, Microphone, Speaker/line out, Audio in(3)
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

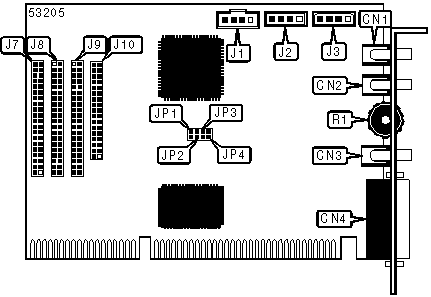

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	Audio in - CD-ROM (Panasonic)	J3
Microphone jack	CN2	CD-ROM ATAPI interface	J7
Speaker/line out	CN3	Panasonic CD-ROM interface	J8
Game/MIDI port	CN4	Mitsumi CD-ROM interface	J9
Audio in - CD-ROM (IDE/Sony)	J1	Sony CD-ROM interface	J10
Audio in - CD-ROM (Mitsumi)	J2	Volume control	R1

BASE I/O ADDRESS
BASE I/O ADDRESS		JP1	JP2
»	530h	Closed	Closed
	E80h	Open	Closed
	F40h	Closed	Open
	604h	Open	Open

CD-ROM SELECT
FUNCTION		JP3	JP4
»	Disabled	Closed	Closed
	Panasonic enabled	Open	Closed
	Sony/Mitsumi/Wearnes enabled	Closed	Open
	IDE enabled	Open	Open
