Processor	80486DX
Processor Speed	25/33MHz
Chip Set	AMI
Max. Onboard DRAM	32MB
Cache	128KB
BIOS	AMI
Dimensions	330mm x 245mm
I/O Options	32-bit external memory card slot, proprietary I/O expansion module slot, PS/2 mouse port, floppy drive interface
NPU Options	4167

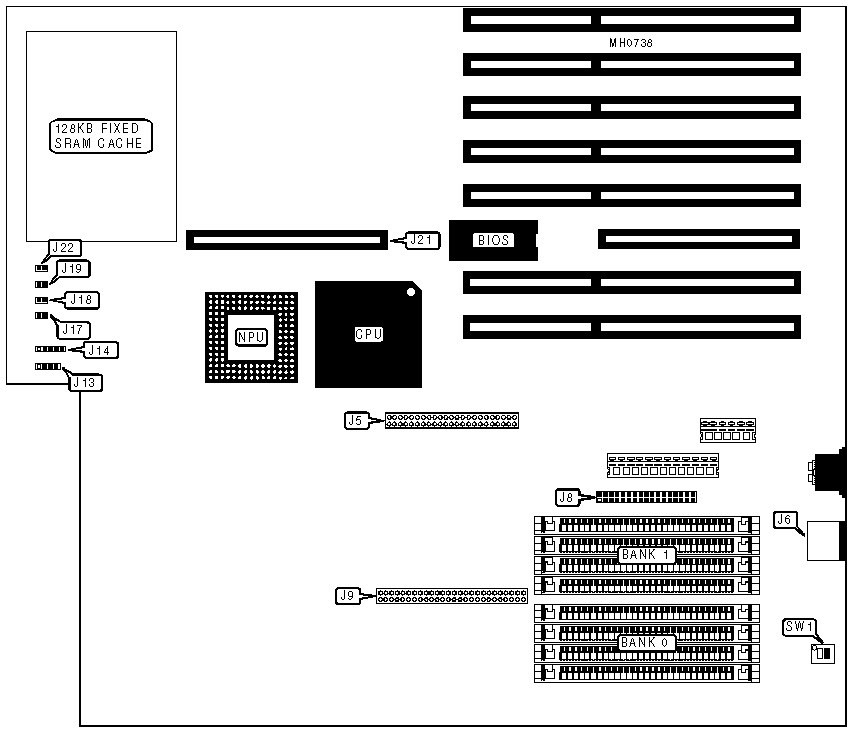

CONNECTIONS
Purpose	Location	Purpose	Location
I/O expansion module	J5 and J9	Reset switch	J17
PS/2 mouse	J6	Turbo switch	J18
Floppy drive interface	J8	Turbo LED	J19
Speaker	J13	External memory card	J21
Power LED & keylock	J14	Diagnostic LED	J22

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	Factory diagnostics disabled	SW1/1	Off
	Factory diagnostics enabled	SW1/1	On
»	Monitor type select monochrome (MDA)	SW1/2	Off
	Monitor type select color (CGA)	SW1/2	On

DRAM CONFIGURATION
Size	Bank 0	Bank 3
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9
