AUVA COMPUTER, INC.
BABY 286 BAM/16-C3
|
Processor |
80286 (exact location unknown) |
|
Processor Speed |
16MHz |
|
Chip Set |
C & T |
|
Max. Onboard DRAM |
16MB (8MB on external memory card) |
|
Cache |
None |
|
BIOS |
AMI/Award/Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
16-bit external memory card |
|
NPU Options |
80287 |
|

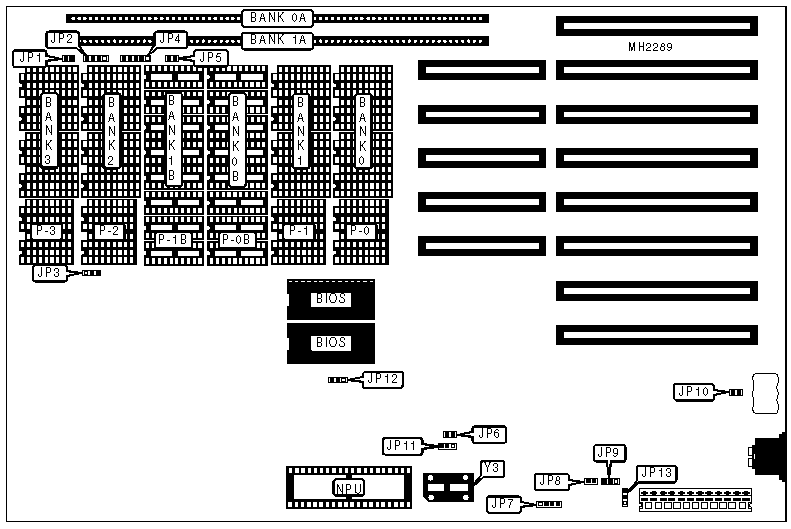

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
JP1 |
Power LED & keylock |
JP4 |
|
Speaker |
JP2 |
Turbo switch |
JP5 |
|
Turbo LED |
JP3 |
External battery |
JP7 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
Turbo enabled |
JP5 |
Closed |
|
|
Turbo disabled |
JP5 |
Open |
|
» |
NPU oscillator select onboard 16/32MHz coprocessor |
JP6 |
Open |
|
|
NPU oscillator select alternate oscillator at Y3 |
JP6 |
Closed |
|
» |
Monitor type select monochrome |
JP8 |
Open |
|
|
Monitor type select color |
JP8 |
Closed |
|
» |
CMOS memory normal operation |
JP9 |
pins 1 & 2 closed |
|
|
CMOS memory clear |
JP9 |
pins 2 & 3 closed |
|
» |
Battery type select internal |
JP10 |
Closed |
|
|
Battery type select external |
JP10 |
Open |
|
» |
NPU speed select 16MHz |
JP11 |
pins 2 & 3 closed |
|
|
NPU speed select 32MHz |
JP11 |
pins 1 & 2 closed |
|
» |
BIOS type select 27128 |
JP12 |
pins 1 & 2 closed |
|
|
BIOS type select 27256 |
JP12 |
pins 2 & 3 closed |
|
» |
BIOS output pin select pin 30 |
JP13 |
pins 1 & 2 closed |
|
|
BIOS output pin select pin 23 |
JP13 |
pins 2 & 3 closed |
|
DRAM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 0A |
Bank 0B |
Bank 1A |
|
512KB |
(4) 44256 |
NONE |
NONE |
NONE |
|
640KB |
(4) 44256 |
NONE |
NONE |
NONE |
|
1MB |
(4) 44256 |
NONE |
NONE |
NONE |
|
1.5MB |
(4) 44256 |
NONE |
NONE |
NONE |
|
1.5MB |
(4) 44256 |
(2) 256K x 9 |
NONE |
NONE |
|
1.64MB |
(4) 44256 |
NONE |
NONE |
NONE |
|
1.64MB |
(4) 44256 |
(2) 256K x 9 |
NONE |
(2) 256K x 9 |
|
2MB |
(4) 44256 |
NONE |
NONE |
NONE |
|
2MB |
(4) 44256 |
(2) 256K x 9 |
NONE |
(2) 256K x 9 |
|
2MB |
(4) 411000 |
NONE |
(6) 411000 |
NONE |
|
3MB |
(4) 44256 |
(2) 1M x 9 |
NONE |
NONE |
|
4MB |
(4) 411000 |
NONE |
(6) 411000 |
NONE |
|
4.64MB |
(4) 44256 |
(2) 1M x 9 |
NONE |
(2) 1M x 9 |
|
5MB |
(4) 44256 |
(2) 1M x 9 |
NONE |
(2) 1M x 9 |
|
6MB |
(4) 411000 |
NONE |
(6) 411000 |
(2) 1M x 9 |
|
8MB |
(4) 411000 |
(2) 1M x 9 |
(6) 411000 |
(2) 1M x 9 |
|
Note:Memory configurations shown in bold are not recommended by the manufacturer. |
||||
|
DRAM CONFIGURATION (CON'T) |
||||
|
Size |
Bank 1B |
Bank 1 |
Bank 2 |
Bank 3 |
|
512KB |
NONE |
NONE |
NONE |
NONE |
|
640KB |
NONE |
NONE |
NONE |
NONE |
|
1MB |
NONE |
(4) 44256 |
NONE |
NONE |
|
1.5MB |
NONE |
(4) 44256 |
(4) 44256 |
NONE |
|
1.5MB |
NONE |
(4) 44256 |
NONE |
NONE |
|
1.64MB |
NONE |
NONE |
(4) 44256 |
(4) 44256 |
|
1.64MB |
NONE |
NONE |
NONE |
NONE |
|
2MB |
NONE |
(4) 44256 |
(4) 44256 |
(4) 44256 |
|
2MB |
NONE |
(4) 44256 |
NONE |
NONE |
|
2MB |
NONE |
(4) 411000 |
NONE |
NONE |
|
3MB |
NONE |
(4) 44256 |
NONE |
NONE |
|
4MB |
(6) 411000 |
(4) 411000 |
(4) 411000 |
(4) 411000 |
|
4.64MB |
NONE |
NONE |
NONE |
NONE |
|
5MB |
NONE |
(4) 44256 |
NONE |
NONE |
|
6MB |
(6) 411000 |
(4) 411000 |
(4) 411000 |
(4) 411000 |
|
8MB |
(6) 411000 |
(4) 411000 |
(4) 411000 |
(4) 411000 |
|
Note: Memory configurations shown in bold are not recommended by the manufacturer. Both DRAM tables must be used in order to acquire desired memory size. |
||||
|
DRAM PARITY CONFIGURATION |
||||||
|
Size |
Parity 0 |
Parity 0B |
Parity 1B |
Parity 1 |
Parity 2 |
Parity 3 |
|
512KB |
(2) 41256 |
NONE |
NONE |
NONE |
NONE |
NONE |
|
640KB |
(2) 41256 |
(2) 41256 |
(2) 41256 |
(2) 41256 |
NONE |
NONE |
|
1MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
NONE |
NONE |
|
1.5MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
(2) 41256 |
NONE |
|
1.5MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
NONE |
NONE |
|
1.64MB |
(2) 41256 |
(2) 4464 |
(2) 4464 |
(2) 4164 |
(2) 41256 |
(2) 41256 |
|
1.64MB |
(2) 41256 |
(2) 41256 |
(2) 41256 |
(2) 41256 |
NONE |
NONE |
|
2MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
(2) 41256 |
(2) 41256 |
|
2MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
NONE |
NONE |
|
2MB |
(2) 411000 |
NONE |
NONE |
(2) 411000 |
NONE |
NONE |
|
3MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
NONE |
NONE |
|
4MB |
(2) 411000 |
(2) 411000 |
(2) 411000 |
(2) 411000 |
(2) 411000 |
(2) 411000 |
|
4.64MB |
(2) 41256 |
(2) 41256 |
(2) 41256 |
(2) 41256 |
NONE |
NONE |
|
5MB |
(2) 41256 |
NONE |
NONE |
(2) 41256 |
NONE |
NONE |
|
6MB |
(2) 411000 |
NONE |
NONE |
(2) 411000 |
(2) 411000 |
(2) 411000 |
|
8MB |
(2) 411000 |
NONE |
NONE |
(2) 411000 |
(2) 411000 |
(2) 411000 |
|
Note: Memory configurations shown in bold are not recommended by the manufacturer. |
||||||
