AXIOM TECHNOLOGY, INC.
AX8025H
|
 Processor  |
 80386SX/CX486SLC  |
|
 Processor Speed  |
 20/25/33/40MHz  |
|
 Chip Set  |
 ALI  |
|
 Max. Onboard DRAM  |
 16MB  |
|
 Cache  |
 None  |
|
 BIOS  |
 AMI  |
|
 Dimensions  |
 169mm x 122mm  |
|
 I/O Options  |
 Floppy drive interface, IDE interface, parallel port, serial ports (2)  |
|
 NPU Options  |
 80387SX/CX387  |
|

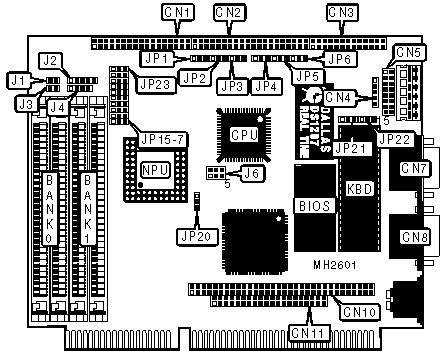

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Floppy drive interface  |
 CN1  |
 PC/104 bus connector  |
 CN11  |
|
 IDE interface  |
 CN2  |
 Reset switch  |
 J1  |
|
 Parallel port  |
 CN3  |
 Power LED & keylock  |
 J2  |
|
 Auxiliary keyboard connector  |
 CN4  |
 IDE interface LED  |
 J3  |
|
 Serial port 1  |
 CN7  |
 Speaker  |
 J4  |
|
 Serial port 2  |
 CN8  |
 External battery  |
 J5  |
|
 PC/104 bus connector  |
 CN10  | ||
|
 Note: The location of jumper J5 is unidentified.  | |||
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Jumper  |
 Position  | |
|
 »  |
 Parallel port IRQ select IRQ7  |
 CN5  |
 pins 13 & 14 closed  |
|
 Parallel port IRQ select IRQ5  |
 CN5  |
 pins 15 & 16 closed  | |
|
 »  |
 Activate NMI to reset CPU when watch dog times out  |
 JP1  |
 pins 1 & 2 closed  |
|
 Reset system when watch dog times out  |
 JP1  |
 pins 2 & 3 closed  | |
|
 Watch dog disabled  |
 JP1  |
 Open  | |
|
 »  |
 External battery type select DS1287/1187  |
 JP2  |
 pins 1 & 2 closed  |
|
 External battery type select MC146818  |
 JP2  |
 pins 2 & 3 closed  | |
|
 »  |
 Parity check enabled  |
 JP3  |
 pins 1 & 2 closed  |
|
 Parity check disabled  |
 JP3  |
 pins 2 & 3 closed  | |
|
 »  |
 Watch dog timer normal  |
 JP4  |
 pins 2 & 3 closed  |
|
 Watch dog timer reset  |
 JP4  |
 pins 1 & 2 closed  | |
|
 »  |
 IDE interface pin 34 used  |
 JP5  |
 pins 2 & 3 closed  |
|
 IDE interface pin 34 not used  |
 JP5  |
 pins 1 & 2 closed  | |
|
 »  |
 Monitor type select monochrome  |
 JP6  |
 pins 1 & 2 closed  |
|
 Monitor type select color  |
 JP6  |
 pins 2 & 3 closed  | |
|
 »  |
 IDE interface enabled  |
 JP7  |
 pins 2 & 3 closed  |
|
 IDE interface disabled  |
 JP7  |
 pins 1 & 2 closed  | |
|
 »  |
 Floppy drive interface enabled  |
 JP8  |
 pins 2 & 3 closed  |
|
 Floppy drive interface disabled  |
 JP8  |
 pins 1 & 2 closed  | |
|
 »  |
 NPU synchronous with CPU  |
 JP15  |
 pins 2 & 3 closed  |
|
 NPU asynchronous with CPU  |
 JP15  |
 pins 1 & 2 closed  | |
|
 »  |
 Time out period select 1 second  |
 JP21  |
 pins 1 & 2 closed  |
|
 Time out period select 10 seconds  |
 JP21  |
 pins 2 & 3 closed  | |
|
 »  |
 Parallel port unidirectional (printer)  |
 JP23  |
 pins 1 & 2 closed  |
|
 Parallel port bidirectional  |
 JP23  |
 pins 2 & 3 closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 1MB  |
 (2) 256K x 9  |
 (2) 256K x 9  |
|
 2MB  |
 (2) 1M x 9  |
 NONE  |
|
 4MB  |
 (2) 1M x 9  |
 (2) 1M x 9  |
|
 8MB  |
 (2) 4M x 9  |
 NONE  |
|
 16MB  |
 (2) 4M x 9  |
 (2) 4M x 9  |
|
 CPU TYPE CONFIGURATION  | |
|
 Type  |
 J6  |
|
 80386SX  |
 Open  |
|
 CX486SLC  |
 pins 1 & 2, 3 & 4, 5 & 6 closed  |
|
 CPU SPEED CONFIGURATION  | ||
|
 Speed  |
 JP20  |
 JP22  |
|
 20MHz  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 25MHz  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 33MHz  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 40MHz  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 PARALLEL PORT CONFIGURATION  | ||
|
 Setting  |
 JP13  |
 JP14  |
|
 278  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 378  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 3BC  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 SERIAL PORT 1 CONFIGURATION  | ||
|
 Setting  |
 JP9  |
 JP10  |
|
 2E8  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 3E8  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 3F8  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 Disabled  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SERIAL PORT 2 CONFIGURATION  | ||
|
 Setting  |
 JP11  |
 JP12  |
|
 2E8  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 2F8  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 3E8  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 Disabled  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SERIAL PORT 1 INTERRUPT CONFIGURATION  | |
|
 IRQ  |
 CN5  |
|
 IRQ3  |
 pins 3 & 4 closed  |
|
 IRQ4  |
 pins 1 & 2 closed  |
|
 IRQ5  |
 pins 5 & 6 closed  |
|
 SERIAL PORT 2 INTERRUPT CONFIGURATION  | |
|
 IRQ  |
 CN5  |
|
 IRQ3  |
 pins 7 & 8 closed  |
|
 IRQ4  |
 pins 9 & 10 closed  |
|
 IRQ5  |
 pins 11 & 12 closed  |
