ATC/UNITRON COMPUTER & COMPUTER PARTS
U 6983
|
 Processor  |
 Pentium  |
|
 Processor Speed  |
 75/90/100/120/133/150MHz  |
|
 Chip Set  |
 Unidentified  |
|
 Max. Onboard DRAM  |
 256MB  |
|
 Cache  |
 256/512/1024KB  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 330mm x 218mm  |
|
 I/O Options  |
 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot  |
|
 NPU Options  |
 None  |

|

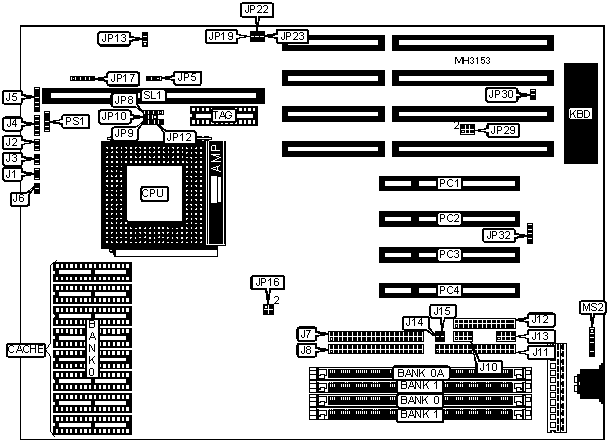

 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Turbo LED  |
 J1  |
 Parallel port  |
 J12  |
|
 Turbo switch  |
 J2  |
 Serial port 2  |
 J13  |
|
 Reset switch  |
 J3  |
 IDE interface LED 2  |
 J14  |
|
 Speaker  |
 J4  |
 IDE interface LED 1  |
 J15  |
|
 Power LED & keylock  |
 J5  |
 IR connector  |
 JP32  |
|
 Green PC connector  |
 J6  |
 PS/2 mouse interface (optional)  |
 MS2  |
|
 IDE interface 2  |
 J7  |
 32-bit PCI slots  |
 PC1 - PC4  |
|
 IDE interface 1  |
 J8  |
 Chassis fan power  |
 PS1  |
|
 Serial port 1  |
 J10  |
 Cache slot  |
 SL1  |
|
 Floppy drive interface  |
 J11  |

  |

  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Jumper  |
 Position  |
|
|
 »  |
 CMOS memory normal operation  |
 JP5  |
 pins 1 & 2 closed  |
|

  |
 CMOS memory clear  |
 JP5  |
 pins 2 & 3 closed  |
|
 »  |
 Factory configured - do not alter  |
 JP8  |
 N/A  |
|
 »  |
 Factory configured - do not alter  |
 JP10  |
 N/A  |
|
 »  |
 BIOS type select EPROM  |
 JP13  |
 Open  |
|

  |
 BIOS type select 5v flash  |
 JP13  |
 pins 1 & 2 closed  |
|

  |
 BIOS type select 12v flash  |
 JP13  |
 pins 2 & 3 closed  |
|
 »  |
 Factory configured - do not alter  |
 JP19  |
 N/A  |
|
 »  |
 Factory configured - do not alter  |
 JP22  |
 N/A  |
|
 »  |
 Factory configured - do not alter  |
 JP23  |
 N/A  |
|
 »  |
 Factory configured - do not alter  |
 JP30  |
 N/A  |
|
 DRAM CONFIGURATION  |
||
|
 Size  |
 Bank 0/0A  |
 Bank 1  |
|
 1MB*  |
 (1) 256K x 36  |
 NONE  |
|
 2MB*  |
 (1) 512K x 36  |
 NONE  |
|
 4MB*  |
 (1) 1M x 36  |
 NONE  |
|
 8MB*  |
 (1) 2M x 36  |
 NONE  |
|
 16MB*  |
 (1) 4M x 36  |
 NONE  |
|
 32MB*  |
 (1) 8M x 36  |
 NONE  |
|
 64MB*  |
 (1) 16M x 36  |
 NONE  |
|
 2MB  |
 (2) 256K x 36  |
 NONE  |
|
 4MB  |
 (2) 512K x 36  |
 NONE  |
|
 4MB  |
 (2) 256K x 36  |
 (2) 256K x 36  |
|
 6MB  |
 (2) 512K x 36  |
 (2) 256K x 36  |
|
 6MB  |
 (2) 256K x 36  |
 (2) 512K x 36  |
|
 8MB  |
 (2) 1M x 36  |
 NONE  |
|
 8MB  |
 (2) 512K x 36  |
 (2) 512K x 36  |
|
 10MB  |
 (2) 1M x 36  |
 (2) 256K x 36  |
|
 10MB  |
 (2) 256K x 36  |
 (2) 1M x 36  |
|
 DRAM CONFIGURATION (CON'T)  |
||
|
 Size  |
 Bank 0/0A  |
 Bank 1  |
|
 12MB  |
 (2) 1M x 36  |
 (2) 512K x 36  |
|
 12MB  |
 (2) 512K x 36  |
 (2) 1M x 36  |
|
 16MB  |
 (2) 2M x 36  |
 NONE  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 18MB  |
 (2) 2M x 36  |
 (2) 256K x 36  |
|
 18MB  |
 (2) 256K x 36  |
 (2) 2M x 36  |
|
 20MB  |
 (2) 2M x 36  |
 (2) 512K x 36  |
|
 20MB  |
 (2) 512K x 36  |
 (2) 2M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 1M x 36  |
 (2) 2M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 NONE  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 34MB  |
 (2) 4M x 36  |
 (2) 256K x 36  |
|
 34MB  |
 (2) 256K x 36  |
 (2) 4M x 36  |
|
 36MB  |
 (2) 4M x 36  |
 (2) 512K x 36  |
|
 36MB  |
 (2) 512K x 36  |
 (2) 4M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 40MB  |
 (2) 1M x 36  |
 (2) 4M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 48MB  |
 (2) 2M x 36  |
 (2) 4M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 NONE  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 66MB  |
 (2) 8M x 36  |
 (2) 256K x 36  |
|
 66MB  |
 (2) 256K x 36  |
 (2) 8M x 36  |
|
 68MB  |
 (2) 8M x 36  |
 (2) 512K x 36  |
|
 68MB  |
 (2) 512K x 36  |
 (2) 8M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 72MB  |
 (2) 1M x 36  |
 (2) 8M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 80MB  |
 (2) 2M x 36  |
 (2) 8M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 96MB  |
 (2) 4M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 16M x 36  |
 NONE  |
|
 130MB  |
 (2) 16M x 36  |
 (2) 256K x 36  |
|
 132MB  |
 (2) 16M x 36  |
 (2) 512K x 36  |
|
 136MB  |
 (2) 16M x 36  |
 (2) 1M x 36  |
|
 144MB  |
 (2) 16M x 36  |
 (2) 2M x 36  |
|
 160MB  |
 (2) 16M x 36  |
 (2) 4M x 36  |
|
 192MB  |
 (2) 16M x 36  |
 (2) 8M x 36  |
|
 256MB  |
 (2) 16M x 36  |
 (2) 16M x 36  |
|
 Note: Sizes with an * present use only Bank 0A.  |
||
|
 CACHE CONFIGURATION  |
|||
|
 Size  |
 Bank 0  |
 TAG  |
 SL1  |
|
 256KB (A)  |
 (8) 32K x 8  |
 (1) 16K x 8  |
 Not installed  |
|
 256KB (B)  |
 NONE  |
 NONE  |
 Installed  |
|
 512KB (A)  |
 (8) 64K x 8  |
 (1) 16K x 8  |
 Not installed  |
|
 512KB (B)  |
 NONE  |
 NONE  |
 Installed  |
|
 1MB  |
 (8) 128K x 8  |
 (1) 32K x 8  |
 Not installed  |
|
 CACHE JUMPER CONFIGURATION  |
||
|
 Size  |
 JP8  |
 JP10  |
|
 256KB  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 512KB  |
 pins 1 & 2, 3 & 4 closed  |
 Open  |
|
 1MB  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 Note: If SL1 is used, these jumpers are ignored.  |
||
|
 CPU SPEED CONFIGURATION  |
|
|
 Speed  |
 JP16  |
|
 75MHz  |
 Open  |
|
 90MHz  |
 pins 1 & 2 closed  |
|
 100MHz  |
 pins 1 & 2, 3 & 4 closed  |
|
 120MHz  |
 pins 1 & 2 closed  |
|
 133MHz  |
 pins 1 & 2, 3 & 4 closed  |
|
 150MHz  |
 pins 1 & 2 closed  |
|
 CPU SPEED CONFIGURATION  |
||
|
 Speed  |
 JP9  |
 JP12  |
|
 1.5x  |
 Open  |
 Open  |
|
 2x  |
 Closed  |
 Open  |
|
 2.5x  |
 Closed  |
 Closed  |
|
 CPU VOLTAGE CONFIGURATION  |
||
|
 Voltage  |
 JP17  |
|
|
 »  |
 3.3v  |
 pins 1 & 2 closed  |
|
 »  |
 3.4v  |
 pins 2 & 3 closed  |
|
 »  |
 3.55v  |
 pins 4 & 5 closed  |
|
 DMA CONFIGURATION  |
|
|
 DMA  |
 JP29  |
|
 DMA 1  |
 pins 1 & 3, 2 & 4 closed  |
|
 DMA 3  |
 pins 3 & 5, 4 & 6 closed  |
