ASPEN SYSTEMS, INC.
SUMMIT
|
Processor |
Alpha |
|
Processor Speed |
266/300/333MHz |
|
Chip Set |
LSI |
|
Max. Onboard DRAM |
1024MB |
|
Cache |
2/4/8/16MB |
|
BIOS |
Aspen |
|
Dimensions |
330mm x 226mm |
|
I/O Options |
32-bit PCI slots (2), 64-bit PCI slots (2), floppy drive interface, parallel port, PS/2 mouse interface, serial ports (2) |
|
NPU Options |
None |
|

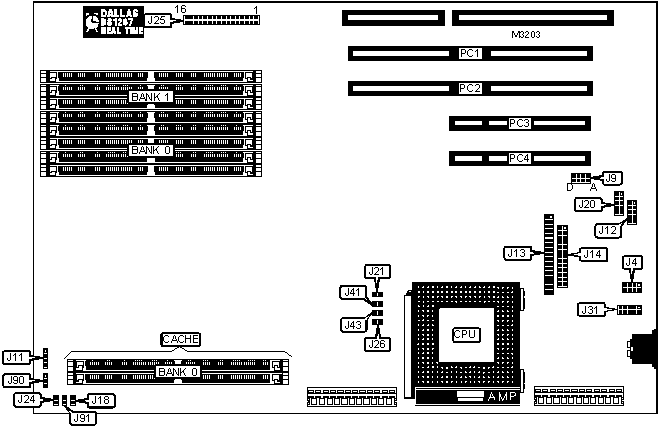

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Remote diagnostics |
J4 |
Reset switch |
J24 |
|
Speaker |
J11 |
PS/2 mouse interface |
J31 |
|
Serial port 2 |
J12 |
LED |
J90 |
|
Floppy drive interface |
J13 |
LED |
J91 |
|
Parallel port |
J14 |
32-bit PCI slots |
PC1 & PC2 |
|
Keylock |
J18 |
64-bit PCI slots |
PC3 & PC4 |
|
Serial port 1 |
J20 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
J25/11 |
Open |
|
» |
Factory configured - do not alter |
J25/12 |
Closed |
|
» |
Factory configured - do not alter |
J25/13 |
Open |
|
» |
Factory configured - do not alter |
J25/14 |
Open |
|
» |
Factory configured - do not alter |
J25/15 |
Open |
|
128KB mode |
J25/16 |
Closed | |
|
256KB mode |
J25/16 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
16MB |
(4) 1M x 36 |
NONE |
|
32MB |
(4) 1M x 36 |
(4) 1M x 36 |
|
32MB |
(4) 2M x 36 |
NONE |
|
64MB |
(4) 2M x 36 |
(4) 2M x 36 |
|
64BMB |
(4) 4M x 36 |
NONE |
|
128M |
(4) 4M x 36 |
(4) 4M x 36 |
|
256MB |
(4) 8M x 36 |
NONE |
|
256MB |
(4) 8M x 36 |
(4) 8M x 36 |
|
256MB |
(4) 16M x 36 |
NONE |
|
512MB |
(4) 16M x 36 |
(4) 16M x 36 |
|
512MB |
(4) 32M x 36 |
NONE |
|
1024MB |
(4) 32M x 36 |
(4) 32M x 36 |
|
DRAM JUMPER CONFIGURATION | ||
|
Size |
J25/1 |
J25/2 |
|
16MB |
Closed |
Closed |
|
32MB |
Closed |
Closed |
|
32MB |
Open |
Open |
|
64MB |
Open |
Open |
|
64BMB |
Closed |
Open |
|
128M |
Closed |
Open |
|
256MB |
Open |
Closed |
|
256MB |
Open |
Closed |
|
256MB |
Closed |
Closed |
|
512MB |
Closed |
Closed |
|
512MB |
Open |
Open |
|
1024MB |
Open |
Open |
|
DRAM SPEED CONFIGURATION | ||
|
Speed |
J25/3 |
J25/4 |
|
60ns |
Open |
Open |
|
70ns |
Closed |
Open |
|
80ns |
Open |
Closed |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
2MB |
2MB |
|
4MB |
4MB |
|
8MB |
8MB |
|
16MB |
16MB |
|
CACHE JUMPER CONFIGURATION | |||||||
|
Size |
J21 |
J25/5 |
J25/6 |
J25/7 |
J26 |
J41 |
J43 |
|
2MB |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
4MB |
Open |
Open |
Closed |
Closed |
Open |
Open |
Closed |
|
8MB |
Open |
Open |
Closed |
Open |
Open |
Closed |
Closed |
|
16MB |
Closed |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
|
CACHE SPEED CONFIGURATION | |||
|
Speed |
J25/8 |
J25/9 |
J25/10 |
|
10ns |
Closed |
Open |
Open |
|
12ns |
Open |
Closed |
Closed |
|
15ns |
Open |
Closed |
Open |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
J9B |
J9C |
J9D |
|
266MHz |
Closed |
Closed |
Closed |
|
300MHz |
Closed |
Closed |
Open |
|
333MHz |
Closed |
Open |
Closed |
