AT & T
MODEL 6386/25 WGS (FM-0589-06)
|
 Processor  |
 80386  |
|
 Processor Speed  |
 25MHz  |
|
 Chip Set  |
 Unidentified  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 8MB (32MB on external memory cards)  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 64KB  |
|
 BIOS  |
 Unidentified  |
|
 Dimensions  |
 355mm x 304mm  |
|
 I/O Options  |
 External memory cards (2), parallel port, PS/2 mouse port, serial ports (2)  |
|
 NPU Options  |
 80387/3167  |
|

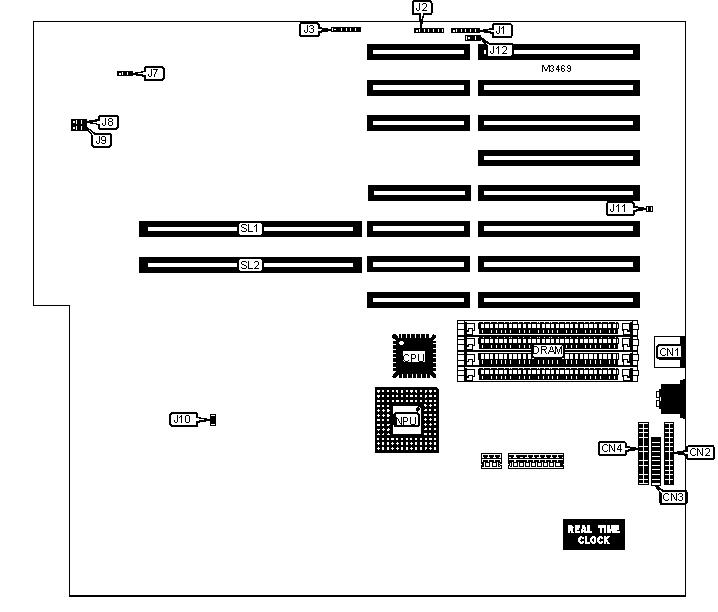

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 PS/2 mouse port  |
 CN1  |
 Serial port  |
 CN4  |
|
 Parallel port  |
 CN2  |
 Remote reset switch  |
 J11  |
|
 Serial port  |
 CN3  |
 External memory cards  |
 SL1 & SL2  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 »  |
 Monitor type select color  |
 J3  |
 Pins 1 & 2 closed  |
|
 Monitor type select monochrome  |
 J3  |
 Pins 2 & 3 closed  | |
|
 »  |
 Password normal operation  |
 J3  |
 Pins 4 & 5 closed  |
|
 Password clear  |
 J3  |
 Pins 5 & 6 closed  | |
|
 BIOS type select 64KB  |
 J7  |
 Pins 2 & 3 closed  | |
|
 BIOS type select 128KB  |
 J7  |
 Pins 1 & 2 closed  | |
|
 »  |
 Factory configured - do not alter  |
 J10  |
 Closed  |
|
 »  |
 Printer acknowledge signal edge trailing edge  |
 J12  |
 Pins 1 & 2 closed  |
|
 Printer acknowledge signal edge leading edge  |
 J12  |
 Pins 2 & 3 closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 4MB  |
 (2) 1M x 9  |
 (2) 1M x 9  |
|
 8MB  |
 (2) 4M x 9  |
 None  |
|
 Note: The location of the banks is unidentified.  | ||
|
 DRAM JUMPER CONFIGURATION  | ||
|
 Size  |
 J8  |
 J9  |
|
 4MB  |
 Pins 2 & 3 closed  |
 Pins 1 & 2 closed  |
|
 8MB  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |
|
 CACHE CONFIGURATION  |
|
 Note: The location of the 64KB cache is unidentified.  |
|
 PARALLEL PORT ADDRESS SELECTION  | |
|
 Setting  |
 J1  |
|
 LPT1  |
 Pins 1 & 2, 5 & 6 closed  |
|
 LPT2  |
 Pins 2 & 3, 4 & 5 closed  |
|
 Disabled  |
 Pins 1 & 2, 4 & 5 closed  |
|
 SERIAL PORT 1 ADDRESS SELECTION  | |
|
 Setting  |
 J2  |
|
 COM1 (3F8h)  |
 Pins 5 & 6 closed  |
|
 Disabled  |
 Pins 4 & 5 closed  |
|
 SERIAL PORT 2 ADDRESS SELECTION  | |
|
 Setting  |
 J2  |
|
 COM2 (2F8h)  |
 Pins 2 & 3 closed  |
|
 Disabled  |
 Pins 1 & 2 closed  |
|

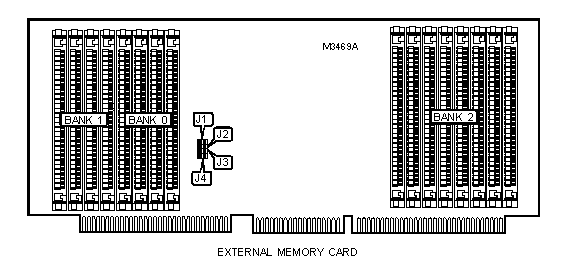

 DRAM CONFIGURATION  | |||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
|
 4MB  |
 (4) 1M x 9  |
 None  |
 None  |
|
 8MB  |
 (4) 1M x 9  |
 (4) 1M x 9  |
 None  |
|
 16MB  |
 (4) 1M x 9  |
 (4) 1M x 9  |
 (8) 1M x 9  |
|
 DRAM JUMPER CONFIGURATION  | ||||
|
 Size  |
 J1  |
 J2  |
 J3  |
 J4  |
|
 4MB  |
 Closed  |
 Open  |
 Open  |
 Closed  |
|
 8MB  |
 Open  |
 Closed  |
 Closed  |
 Open  |
|
 16MB  |
 Closed  |
 Closed  |
 Open  |
 Open  |
