ACER, INC.
V20L-486 ALL IN ONE
|
 Processor  |
 AM486SX/80486SX/AM486DX/80486DX/CX486DX2/AM486DX2/ 80486DX2/80486DX4/P24D/P24T  |
|
 Processor Speed  |
 25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz  |
|
 Chip Set  |
 ALI  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 Unidentified  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 128/256/512KB  |
|
 BIOS  |
 Unidentified  |
|
 Dimensions  |
 330mm x 218mm  |
|
 I/O Options  |
 32-bit VESA local bus slot, floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2)  |
|
 NPU Options  |
 None  |
|

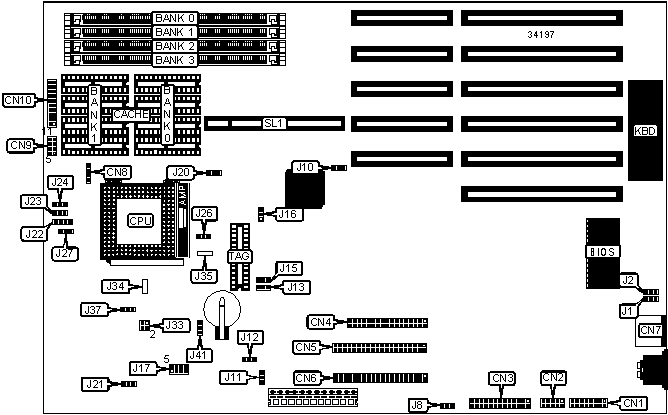

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Serial port 2  |
 CN1  |
 Power LED & keylock  |
 CN9/pins 1 - 4  |
|
 Serial port 1  |
 CN2  |
 Reset switch  |
 CN9/pins 7 & 8  |
|
 Parallel port  |
 CN3  |
 Power LED & keylock  |
 CN10/pins 1 - 5  |
|
 Floppy drive interface  |
 CN4  |
 Speaker  |
 CN10/pins 7 - 10  |
|
 IDE interface 1  |
 CN5  |
 Turbo LED  |
 CN10/pins 12 & 13  |
|
 IDE interface 2  |
 CN6  |
 Turbo switch  |
 CN10/pins 15 - 17  |
|
 PS/2 mouse port  |
 CN7  |
 Reset switch  |
 CN10/pins 19 & 20  |
|
 IDE interface LED  |
 CN8  |
 32-bit VESA local bus slot  |
 SL1  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 »  |
 Password disabled  |
 J1  |
 Pins 2 & 3 closed  |
|
 Password enabled  |
 J1  |
 Pins 1 & 2 closed  | |
|
 »  |
 Factory configured - do not alter (OEM BIOS enabled)  |
 J2  |
 Pins 2 & 3 closed  |
|
 »  |
 M5115 I/O enabled  |
 J8  |
 Pins 1 & 2 closed  |
|
 M5115 I/O disabled  |
 J8  |
 Pins 2 & 3 closed  | |
|
 »  |
 Factory configured - do not alter  |
 J10  |
 Unidentified  |
|
 »  |
 Local bus IDE I/O address select 0FXH  |
 J11  |
 Pins 1 & 2 closed  |
|
 Local bus IDE I/O address select 07XH  |
 J11  |
 Pins 2 & 3 closed  | |
|
 »  |
 Local bus IDE enabled  |
 J12  |
 Pins 2 & 3 closed  |
|
 Local bus IDE disabled  |
 J12  |
 Pins 1 & 2 closed  | |
|
 »  |
 Factory configured - do not alter  |
 J22  |
 Unidentified  |
|
 Reset switch enabled  |
 J23  |
 Pins 1 & 2 closed  | |
|
 Reset switch disabled  |
 J23  |
 Pins 2 & 3 closed  | |
|
 Green PC connector enabled  |
 J24  |
 Pins 1 & 2 closed  | |
|
 Green PC connector disabled  |
 J24  |
 Pins 2 & 3 closed  | |
|
 Factory configured - do not alter  |
 J41  |
 Pins 2 & 3 closed  | |
|
 DRAM CONFIGURATION  |
|
 Note: The maximum amount of memory is unidentified.  |
|
 CACHE CONFIGURATION  | |||
|
 Size  |
 Bank 0  |
 Bank 1  |
 TAG  |
|
 128KB  |
 (4) 32K x 8  |
 None  |
 (1) 32K x 8  |
|
 256KB  |
 (4) 32K x 8  |
 (4) 32K x 8  |
 (1) 32K x 8  |
|
 512KB  |
 (4) 128K x 8  |
 None  |
 (1) 32K x 8  |
|
 CACHE JUMPER CONFIGURATION  | |||
|
 Size  |
 J13  |
 J15  |
 J16  |
|
 128KB  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |
 Pins 1 & 2 closed  |
|
 256KB  |
 Pins 2 & 3 closed  |
 Pins 1 & 2 closed  |
 Pins 2 & 3 closed  |
|
 512KB  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|
 CPU SPEED SELECTION  | ||
|
 Speed  |
 JP17  |
 JP21  |
|
 25MHz  |
 Pins 1 & 5 closed  |
 Pins 2 & 3 closed  |
|
 33MHz  |
 Pins 2 & 6 closed  |
 Pins 2 & 3 closed  |
|
 40MHz  |
 Pins 3 & 7 closed  |
 Pins 1 & 2 closed  |
|
 50iMHz  |
 Pins 1 & 5 closed  |
 Pins 2 & 3 closed  |
|
 50MHz  |
 Pins 4 & 8 closed  |
 Pins 1 & 2 closed  |
|
 66iMHz  |
 Pins 2 & 6 closed  |
 Pins 2 & 3 closed  |
|
 75iMHz  |
 Pins 1 & 5 closed  |
 Pins 2 & 3 closed  |
|
 100iMHz  |
 Pins 2 & 6 closed  |
 Pins 2 & 3 closed  |
|
 CPU TYPE SELECTION  | |||||||
|
 Type  |
 J20  |
 J26  |
 J27  |
 J33  |
 J34  |
 J35  |
 J37  |
|
 AM486SX  |
 1 & 2  |
 1 & 2  |
 1 & 2  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 80486SX  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 AM486DX  |
 1 & 2  |
 1 & 2  |
 1 & 2  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 80486DX  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 CX486DX2  |
 1 & 2  |
 2 & 3  |
 Open  |
 2 & 4  |
 1 & 2  |
 2 & 3  |
 1 & 2  |
|
 AM486DX2  |
 1 & 2  |
 1 & 2  |
 1 & 2  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 80486DX2  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 80486DX4  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 P24D  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 1 & 2  |
 2 & 3  |
|
 P24T  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
 1 & 3  |
 2 & 3  |
 1 & 2  |
 2 & 3  |
|
 Note: Pins designated should be in the closed position.  | |||||||
