ACTIVEI SYSTEMS, INC.
ADMIRAL
|
Processor |
CX M1/IBM/AM K5/AM K6/Pentium |
|
Processor Speed |
90/100/120/133/150/166/200/233MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, VRM connector, USB connectors (2), ATX power connector, System Management Module |
|
NPU Options |
None |
|

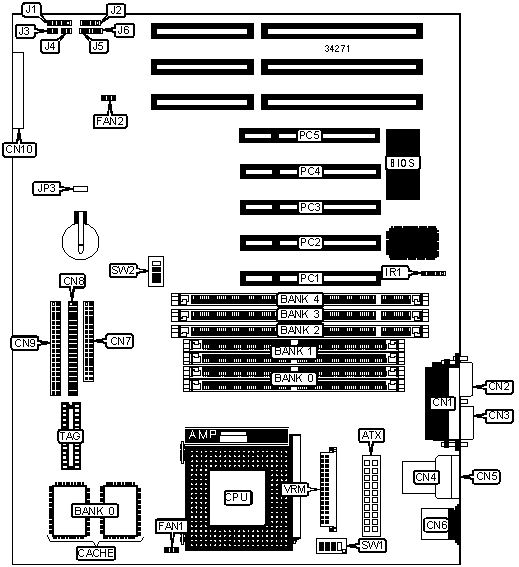

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Chassis fan power |
FAN1 |
|
Parallel port |
CN1 |
Chassis fan power |
FAN2 |
|
Serial port 2 |
CN2 |
IR connector |
IR1 |
|
Serial port 1 |
CN3 |
Power LED & keylock |
J1 |
|
USB connector 1 |
CN4 |
Speaker |
J2 |
|
USB connector 2 |
CN5 |
Soft off power supply |
J3 |
|
PS/2 mouse port |
CN6 |
Reset switch |
J4 |
|
Floppy drive interface |
CN7 |
Green PC LED |
J5 |
|
IDE interface 2 |
CN8 |
IDE interface LED |
J6 |
|
IDE interface 1 |
CN9 |
32-bit PCI slots |
PC1 – PC5 |
|
System Management Module |
CN10 |
VRM connector |
VRM |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter (CMOS) |
JP3 |
Unidentified |
|
DRAM CONFIGURATION | |||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
Bank 4 |
|
8MB |
(2) 1M x 36 |
None |
None |
None |
None |
|
8MB |
None |
None |
(1) 1M x 64 |
None |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
None |
|
16MB |
None |
None |
(1) 2M x 64 |
None |
None |
|
16MB |
None |
None |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
None |
None |
|
24MB |
None |
None |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
None |
None |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
(1) 1M x 64 |
|
24MB |
(2) 1M x 36 |
None |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(2) 4M x 36 |
None |
None |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
None |
|
32MB |
None |
None |
(1) 4M x 64 |
None |
None |
|
32MB |
None |
None |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
(1) 2M x 64 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
None |
None |
|
40MB |
None |
None |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
(1) 1M x 64 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
None |
None |
|
48MB |
None |
None |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
None |
None |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
DRAM CONFIGURATION (CON’T) | |||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
Bank 4 |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
(1) 2M x 64 |
|
48MB |
(2) 2M x 36 |
None |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
48MB |
(2) 2M x 36 |
None |
(1) 2M x 64 |
None |
(1) 2M x 64 |
|
64MB |
(2) 8M x 36 |
None |
None |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
None |
|
64MB |
None |
None |
(1) 8M x 64 |
None |
None |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
None |
None |
None |
|
72MB |
None |
None |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
(1) 1M x 64 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
None |
None |
|
80MB |
None |
None |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
(1) 2M x 64 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
None |
None |
|
96MB |
None |
None |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
None |
None |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
96MB |
(2) 4M x 36 |
None |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
None |
|
128MB |
(2) 16M x 36 |
None |
None |
None |
None |
|
128MB |
None |
None |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
128MB |
None |
None |
(1) 16M x 64 |
None |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
None |
None |
None |
|
136MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
(1) 1M x 64 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
None |
None |
|
144MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
(1) 2M x 64 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
None |
None |
|
160MB |
(2) 8M x 36 |
None |
(1) 8M x 64 |
None |
(1) 8M x 64 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
None |
None |
|
192MB |
None |
None |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
192MB |
(2) 8M x 36 |
None |
None |
(1) 8M x 64 |
(1) 8M x 64 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
None |
None |
|
256MB |
None |
None |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
256MB |
None |
None |
None |
(1) 32M x 64 |
None |
|
256MB |
(2) 32M x 36 |
None |
None |
None |
None |
|
Note: Board accepts EDO memory. Banks 0 & 1 and 2 – 4 are interchangeable. | |||||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(2) 32K x 32 |
Unidentified |
|
512KB |
(2) 64K x 32 |
Unidentified |
|
CPU SPEED SELECTION (CYRIX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
133MHz |
55MHz |
2x |
On |
Off |
On |
On |
|
150MHz |
60MHz |
2x |
On |
Off |
On |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (IBM) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
133MHz |
55MHz |
2x |
On |
Off |
On |
On |
|
150MHz |
60MHz |
2x |
On |
Off |
On |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AMD) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
On |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
1.5x |
Off |
Off |
On |
Off |
|
133MHz |
66MHz |
1.5x |
On |
Off |
Off |
Off |
|
150MHz |
60MHz |
1.75x |
On |
On |
On |
Off |
|
166MHz K5 |
66MHz |
1.75x |
On |
On |
Off |
Off |
|
166MHz K6 |
66MHz |
2.5x |
On |
On |
Off |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
On |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
On |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION | ||||
|
Voltage |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
2.5v |
On |
Off |
Off |
Off |
|
2.8v |
Off |
On |
Off |
Off |
|
2.9v |
Off |
Off |
On |
Off |
|
3.2v |
Off |
Off |
Off |
On |
|
3.3v |
N/A |
N/A |
N/A |
N/A |
|
3.5v |
N/A |
N/A |
N/A |
N/A |
