AMERICAN PREDATOR CORPORATION
HUNTER MIDGET
|
Processor |
CX 6X86/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB |
|
Maximum Video Memory |
None |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), IDE interfaces (2), PS/2 mouse interface |
|
NPU Options |
None |
|

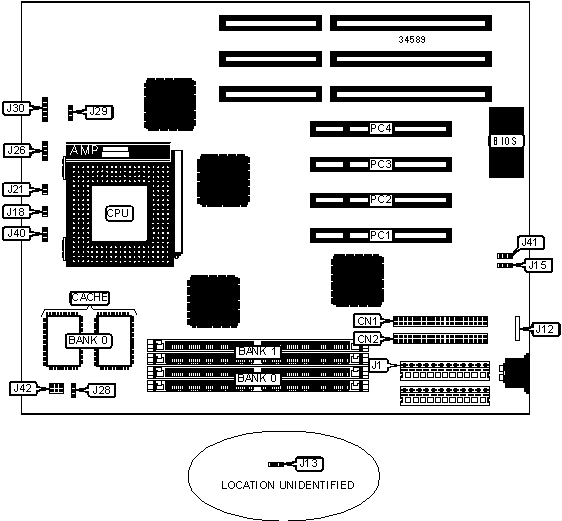

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IDE interface 1 |
CN1 |
IDE interface LED |
J21 |
|
IDE interface 2 |
CN2 |
Speaker |
J26 |
|
3.3v power |
J1 |
Power LED & keylock |
J30 |
|
PS/2 mouse interface |
J12 |
CPU fan power |
J40 |
|
Reset switch |
J18 |
32-bit PCI slots |
PC1 – PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
J13 |
Pins 1 & 2 closed |
|
CMOS memory clear |
J13 |
Pins 2 & 3 closed | |
|
» |
Monitor type select color |
J15 |
Pins 2 & 3 closed |
|
Monitor type select monochrome |
J15 |
Pins 1 & 2 closed | |
|
» |
PS/2 mouse IRQ enabled |
J41 |
Pins 2 & 3 closed |
|
PS/2 mouse IRQ disabled |
J41 |
Pins 1 & 2 closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
None |
|
4MB |
(2) 512K x 36 |
None |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
None |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(2) 32K x 32 |
|
CPU SPEED SELECTION | |||||
|
CPU speed |
Clock speed |
Multiplier |
J28 |
J29 |
J42 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
5 & 6 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
3 & 4 |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
5 & 6 |
|
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
3 & 4 |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
2 & 3 |
5 & 6 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
3 & 4 |
|
180MHz |
60MHz |
3x |
1 & 2 |
2 & 3 |
5 & 6 |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
