ACER, INC.
AP5S
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 Pentium  |
|
 Processor Speed  |
 75/90/100/120/133/150/166/200MHz  |
|
 Chip Set  |
 SIS  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 512MB (EDO supported)  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 256KB  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 280mm x 220mm  |
|
 I/O Options  |
 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector  |
|
 NPU Options  |
 None  |
|

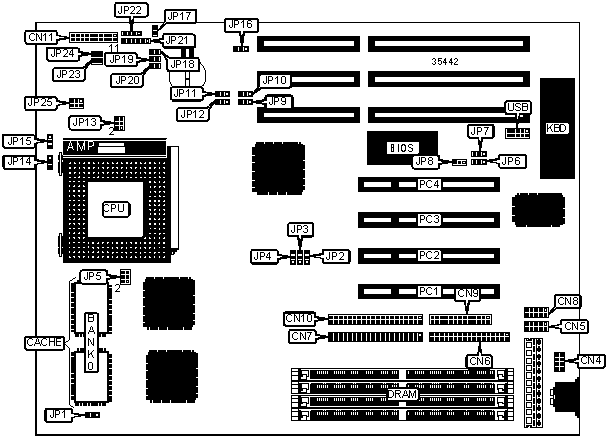

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 PS/2 mouse interface  |
 CN4  |
 Green PC LED  |
 CN11/pins 12 & 13  |
|
 Serial port 1  |
 CN5  |
 Green PC connector  |
 CN11/pins 15  17  |
|
 Floppy drive interface  |
 CN6  |
 Reset switch  |
 CN11/pins 19 & 20  |
|
 IDE interface 1  |
 CN7  |
 CPU fan power  |
 JP17  |
|
 Serial port 2  |
 CN8  |
 IR connector  |
 JP21  |
|
 Parallel port  |
 CN9  |
 IDE interface LED  |
 JP22  |
|
 IDE interface 2  |
 CN10  |
 32-bit PCI slots  |
 PC1  PC4  |
|
 Power LED & keylock  |
 CN11/pins 1  5  |
 USB connector  |
 USB  |
|
 Speaker  |
 CN11/pins 7  10  | ||
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 »  |
 Factory configured - do not alter  |
 JP2  |
 Unidentified  |
|
 »  |
 Flash BIOS voltage select 5v  |
 JP8  |
 Pins 2 & 3 closed  |
|
 Flash BIOS voltage select 12v  |
 JP8  |
 Pins 1 & 2 closed  | |
|
 »  |
 Factory configured - do not alter  |
 JP9  |
 Unidentified  |
|
 »  |
 PS/2 mouse enabled  |
 JP10  |
 Pins 1 & 2 closed  |
|
 PS/2 mouse disabled  |
 JP10  |
 Pins 2 & 3 closed  | |
|
 »  |
 Factory configured - do not alter  |
 JP11  |
 Unidentified  |
|
 »  |
 CMOS memory normal operation  |
 JP12  |
 Pins 1 & 2 closed  |
|
 CMOS memory clear  |
 JP12  |
 Pins 2 & 3 closed  | |
|
 On board I/O enabled  |
 JP16  |
 Pins 1 & 2 closed  | |
|
 On board I/O disabled  |
 JP16  |
 Pins 2 & 3 closed  | |
|
 »  |
 Factory configured - do not alter  |
 JP23  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 JP24  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 JP25  |
 Unidentified  |
|
 SIMM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 SIMM CONFIGURATION (CONT)  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 16M x 36  |
 None  |
|
 136MB  |
 (2) 16M x 36  |
 (2) 1M x 36  |
|
 144MB  |
 (2) 16M x 36  |
 (2) 2M x 36  |
|
 160MB  |
 (2) 16M x 36  |
 (2) 4M x 36  |
|
 192MB  |
 (2) 16M x 36  |
 (2) 8M x 36  |
|
 256MB  |
 (2) 16M x 36  |
 (2) 16M x 36  |
|
 256MB  |
 (2) 32M x 36  |
 None  |
|
 264MB  |
 (2) 32M x 36  |
 (2) 1M x 36  |
|
 272MB  |
 (2) 32M x 36  |
 (2) 2M x 36  |
|
 288MB  |
 (2) 32M x 36  |
 (2) 4M x 36  |
|
 320MB  |
 (2) 32M x 36  |
 (2) 8M x 36  |
|
 384MB  |
 (2) 32M x 36  |
 (2) 16M x 36  |
|
 512MB  |
 (2) 32M x 36  |
 (2) 32M x 36  |
|
 Note: Board accepts EDO memory.  | ||
|
 CACHE CONFIGURATION  | |
|
 Size  |
 Bank 0  |
|
 256KB  |
 (2) 32K x 32  |
|
 CACHE TYPE CONFIGURATION  | |
|
 Type  |
 JP1  |
|
 Linear mode  |
 Pins 1 & 2 closed  |
|
 Interleave mode  |
 Pins 2 & 3 closed  |
|
 CPU SPEED SELECTION  | ||||||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP3  |
 JP4  |
 JP14  |
 JP15  |
|
 75MHz  |
 50MHz  |
 1.5x  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 90MHz  |
 60MHz  |
 1.5x  |
 2 & 3  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
|
 100MHz  |
 66MHz  |
 1.5x  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 2 & 3  |
|
 120MHz  |
 60MHz  |
 2x  |
 2 & 3  |
 1 & 2  |
 2 & 3  |
 1 & 2  |
|
 133MHz  |
 66MHz  |
 2x  |
 1 & 2  |
 2 & 3  |
 2 & 3  |
 1 & 2  |
|
 150MHz  |
 60MHz  |
 2.5x  |
 2 & 3  |
 1 & 2  |
 1 & 2  |
 1 & 2  |
|
 166MHz  |
 66MHz  |
 2.5x  |
 1 & 2  |
 2 & 3  |
 1 & 2  |
 1 & 2  |
|
 200MHz  |
 66MHz  |
 3x  |
 1 & 2  |
 2 & 3  |
 1 & 2  |
 2 & 3  |
|
 Note: Pins designated should be in the closed position.  | ||||||
|
 CPU TYPE SELECTION  | ||
|
 Type  |
 JP5  |
 JP13  |
|
 P54C  |
 Pins 1 & 2, 3 & 4, 5 & 6 closed  |
 Pins 1 & 2, 3 & 4, 5 & 6 closed  |
|
 CPU VOLTAGE SELECTION  | |||
|
 Voltage  |
 JP18  |
 JP19  |
 JP20  |
|
 VRE  |
 Closed  |
 Open  |
 Open  |
|
 STD  |
 Open  |
 Closed  |
 Open  |
|
 DMA CHANNEL SELECTION  | ||
|
 Channel  |
 JP6  |
 JP7  |
|
 1  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |
|
 3  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
