ACER, INC.
V59LA
|
Device Type |
Mainboard |
|
Processor |
CX MII/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
75/90/100/120/133/150/166/200/233/266/300MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
256MB (EDO & SDRAM supported) |
|
Maximum Video Memory |
4MB |
|
Cache |
512KB |
|
BIOS |
Acer |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
Ethernet 10BaseT connector, floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, riser slot, USB connector, audio in - CD-ROM, wake on LAN connector, wake on modem connector |
|

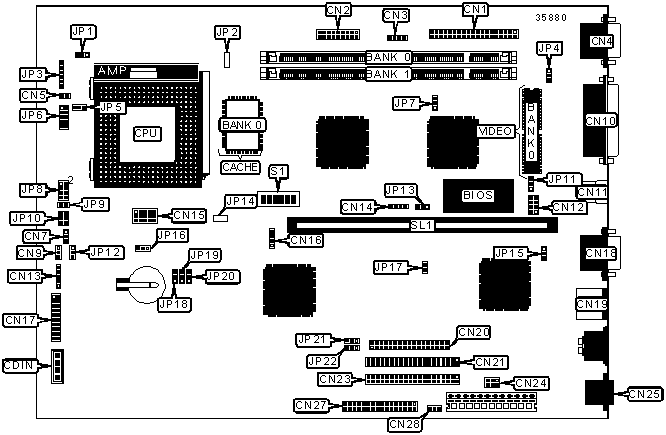

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Audio in - CD-ROM |
CDIN |
IDE interface 1 |
CN21 |
|
AMC connector |
CN1 |
IDE interface 2 |
CN23 |
|
VGA interface |
CN2 |
LAN LED |
CN24 |
|
VGA port |
CN4 |
Ethernet 10BaseT connector |
CN25 |
|
Chassis fan power |
CN5 |
Audio connector |
CN27 |
|
Printer connector |
CN6 |
Green PC connector |
CN28 |
|
Power LED |
CN8 |
Modem connector |
CN29 |
|
Reset switch |
CN9 |
Chassis fan power |
JP3 |
|
Parallel port |
CN10 |
IDE interface LED |
JP8/pins 1 - 3 |
|
USB connector |
CN11 |
Power message LED |
JP8/pins 2/4/6 |
|
Serial port/USB connector |
CN12 |
Power on connector |
JP8/pins 7 & 8 |
|
Wake on LAN connector |
CN14 |
Power on connector |
JP9 |
|
Voltage connector |
CN15 |
Microphone in |
JP10/pins 2 & 4 |
|
Wake on modem connector |
CN16 |
Wavetable connector |
JP10/pins 1/3/5 |
|
Game interface |
CN17 |
LAN LED |
JP17 |
|
Serial port 1 |
CN18 |
Speaker |
JP25 |
|
PS/2 mouse port |
CN19 |
Riser slot |
SL1 |
|
Floppy drive interface |
CN20 | ||
|
Note: The location of CN6, CN8, CN29 & JP25 are unidentified. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
CN3 |
Unidentified |
|
» |
Factory configured - do not alter |
CN17 |
Unidentified |
|
» |
Interrupt enabled |
JP4 |
Pins 2 & 3 closed |
|
Interrupt disabled |
JP4 |
Pins 1 & 2 closed | |
|
» |
On board video enabled |
JP7 |
Pins 2 & 3 closed |
|
On board video disabled |
JP7 |
Pins 1 & 2 closed | |
|
» |
Flash BIOS voltage select 5v |
JP11 |
Pins 2 & 3 closed |
|
Flash BIOS voltage select 12v |
JP11 |
Pins 1 & 2 closed | |
|
» |
Support green PC connector |
JP12 |
Pins 1 & 2 closed |
|
Support reset switch |
JP12 |
Pins 2 & 3 closed | |
|
» |
Boot block enabled |
JP13 |
Pins 2 & 3 closed |
|
Boot block disabled |
JP13 |
Pins 1 & 2 closed | |
|
USER CONFIGURABLE SETTINGS (CON'T) | |||
|
Function |
Label |
Position | |
|
» |
LAN disabled |
JP15 |
Pins 2 & 3 closed |
|
LAN enabled |
JP15 |
Pins 1 & 2 closed | |
|
» |
UPS enabled |
JP16 |
Pins 1 & 2 closed |
|
UPS disabled |
JP16 |
Pins 2 & 3 closed | |
|
» |
BIOS type select Acer |
JP21 |
Pins 1 & 2 closed |
|
BIOS type select OEM |
JP21 |
Pins 2 & 3 closed | |
|
» |
Password disabled |
JP22 |
Pins 2 & 3 closed |
|
Password enabled |
JP22 |
Pins 1 & 2 closed | |
|
DIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
Note: Board accepts EDO & SDRAM memory. | ||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(1) 64K x 64 |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The video memory is factory installed and is not configurable. |
|
CPU SPEED SELECTION (CX 6X86MX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP18 |
JP19 |
JP20 |
|
200MHz |
66MHz |
2.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
233MHz |
66MHz |
3x |
1 & 2 |
1 & 2 |
1 & 2 |
|
233MHz |
75MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
|
266MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
266MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (CX 6X86MX, CON'T) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
|
233MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
|
233MHz |
75MHz |
2.5x |
Off |
Off |
Off |
On |
On |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
|
266MHz |
75MHz |
3x |
Off |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (AM K6) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP18 |
JP19 |
JP20 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
200MHz |
66MHz |
3x |
1 & 2 |
1 & 2 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
266MHz |
66MHz |
4x |
1 & 2 |
1 & 2 |
1 & 2 |
|
300MHz |
66MHz |
4.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (AM K6, CON'T) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
Off |
Off |
On |
Off |
|
300MHz |
66MHz |
4.5x |
Off |
Off |
Off |
On |
On |
|
CPU SPEED SELECTION (INTEL) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP18 |
JP19 |
JP20 |
|
90MHz |
60MHz |
1.5x |
2 & 3 |
1 & 2 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
1 & 2 |
|
133MHz |
66MHz |
2x |
1 & 2 |
1 & 2 |
1 & 2 |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
200MHz |
66MHz |
3x |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL, CON'T) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
|
133MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
|
150MHz |
60MHz |
2.5x |
On |
Off |
Off |
On |
On |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (INTEL MMX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP18 |
JP19 |
JP20 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
200MHz |
66MHz |
3x |
1 & 2 |
1 & 2 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL MMX, CON'T) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU TYPE SELECTION | |||
|
Type |
JP1 |
JP2 |
JP14 |
|
P54C |
Pins 2 & 3 closed |
Closed |
Open |
|
P55C |
Pins 2 & 3 closed |
Open |
Closed |
|
AM K6 |
Pins 2 & 3 closed |
Open |
Closed |
|
CX MII |
Pins 2 & 3 closed |
Open |
Closed |
|
AM K6-266 |
Pins 1 & 2 closed |
Open |
Closed |
|
AM K6-300 |
Pins 1 & 2 closed |
Open |
Closed |
|
CPU VOLTAGE SELECTION (SINGLE) | ||
|
Voltage |
JP5 | |
| » |
3.3v |
Pins 2 & 3 closed |
|
3.52v |
Pins 1 & 2 closed | |
|
CPU VOLTAGE SELECTION (DUAL) | |
|
Voltage |
JP6 |
|
1.8v |
Pins 9 & 10 closed |
|
2.1v |
Pins 7 & 8 closed |
|
2.8v |
Pins 5 & 6 closed |
|
2.9v |
Pins 3 & 4 closed |
|
3.2v |
Pins 1 & 2 closed |
