ACER, INC.
ACERALTOS 9100 (M9N), M9N
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 Pentium II  |
|
 Processor Speed  |
 266/300MHz  |
|
 Chip Set  |
 Intel 440FX  |
|
 Video Chip Set  |
 Unidentified  |
|
 Maximum Onboard Memory  |
 128MB (EDO supported)  |
|
 Maximum Video Memory  |
 2MB  |
|
 Cache  |
 256/512KB (located on Pentium II CPU)  |
|
 BIOS  |
 Acer  |
|
 Dimensions  |
 305mm x 244mm  |
|
 I/O Options  |
 32-bit PCI slots (5), Ethernet 10BaseT connector, floppy drive interface, IDE interface, SCSI interface, Wide Ultra SCSI interface, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2), ATX power connector, CPU slot  |

|

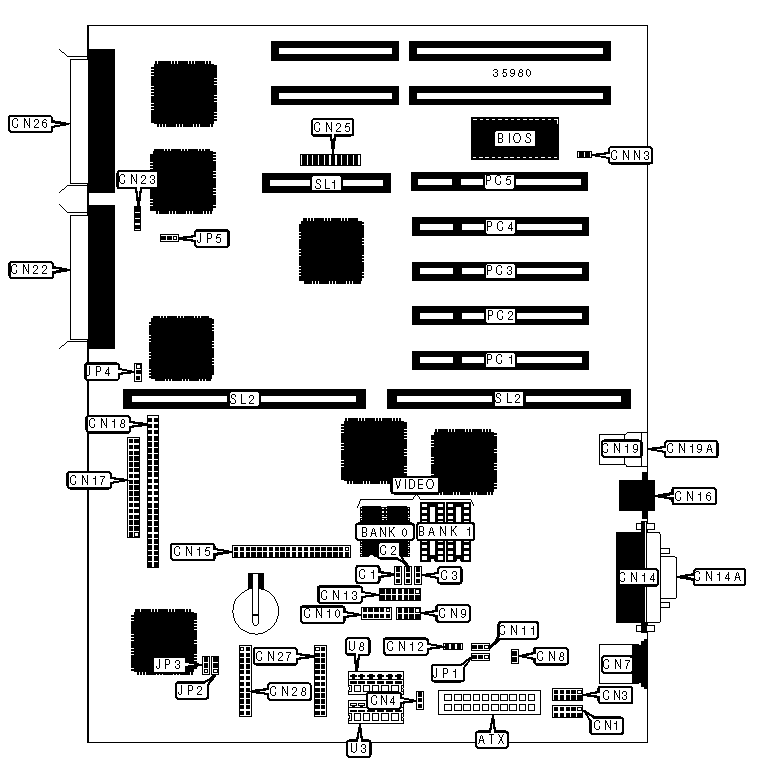

 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 ATX power connector  |
 ATX  |
 Ethernet 10BaseT connector  |
 CN16  |
|
 Chassis fan power  |
 C1  |
 Floppy drive interface  |
 CN17  |
|
 Chassis fan power  |
 C2  |
 SCSI interface  |
 CN18  |
|
 Chassis fan power  |
 C3  |
 USB connector 1  |
 CN19  |
|
 Serial port 1  |
 CN1  |
 USB connector 2  |
 CN19A  |
|
 Serial port 2  |
 CN3  |
 External SCSI interface  |
 CN22  |
|
 Software shutdown for 420 power  |
 CN4  |
 IDE interface LED  |
 CN23  |
|
 PS/2 mouse port  |
 CN7  |
 SMM connector  |
 CN25  |
|
 Soft off power supply  |
 CN8  |
 External SCSI interface  |
 CN26  |
|
 Power LED & keylock  |
 CN9  |
 RDM connector  |
 CN27  |
|
 Redundant power supply connector  |
 CN10  |
 RDM connector  |
 CN28  |
|
 Redundant power supply shutdown  |
 CN12  |
 Chassis intrusion connector  |
 CNN3  |
|
 LED connector  |
 CN13  |
 32-bit PCI slots  |
 PC1 - PC5  |
|
 Parallel port  |
 CN14  |
 CPU slot  |
 SL2  |
|
 VGA port  |
 CN14A  |
 3.3v power  |
 U3  |
|
 IDE interface  |
 CN15  |
 3.3v power  |
 U8  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Factory configured - do not alter  |
 CN11  |
 Unidentified  |
|
 »  |
 Software shutdown for CN4 enabled  |
 JP1  |
 Pins 1 & 2 closed  |
|

  |
 Software shutdown for CN4 disabled  |
 JP1  |
 Pins 2 & 3 closed  |
|
 »  |
 BIOS type select Acer  |
 JP2  |
 Pins 1 & 2 closed  |
|

  |
 BIOS type select OEM  |
 JP2  |
 Pins 2 & 3 closed  |
|
 »  |
 Password disabled  |
 JP3  |
 Pins 2 & 3 closed  |
|

  |
 Password enabled  |
 JP3  |
 Pins 1 & 2 closed  |
|
 »  |
 On board video enabled  |
 JP5  |
 Pins 1 & 2 closed  |
|

  |
 On board video disabled  |
 JP5  |
 Pins 2 & 3 closed  |
|
 »  |
 Factory configured - do not alter  |
 SL1  |
 Unidentified  |
|
 VIDEO MEMORY CONFIGURATION  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 1MB  |
 (2) 256K x 16  |
 None  |
|
 2MB  |
 (2) 256K x 16  |
 (2) 256K x 16  |
|
 SCSI TERMINATON SELECTION  |
|
|
 Setting  |
 JP4  |
|
 Termination disabled  |
 Open  |
|
 Termination enabled  |
 Pins 1 & 2 closed  |
|
 » Termination switchable through SCSI select utility  |
 Pins 2 & 3 closed  |

|
 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Chassis fan power  |
 CN2  |
 Chassis fan power  |
 JP3  |
|
 Chassis fan power  |
 CN3  |
 Chassis fan power  |
 JP4  |
|
 DIMM CONFIGURATION  |
||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 8MB  |
 (1) 1M x 64  |
 None  |
 None  |
 None  |
|
 16MB  |
 (1) 2M x 64  |
 None  |
 None  |
 None  |
|
 16MB  |
 (1) 1M x 64  |
 (1) 1M x 64  |
 None  |
 None  |
|
 24MB  |
 (1) 2M x 64  |
 (1) 1M x 64  |
 None  |
 None  |
|
 24MB  |
 (1) 1M x 64  |
 (1) 1M x 64  |
 (1) 1M x 64  |
 None  |
|
 32MB  |
 (1) 4M x 64  |
 None  |
 None  |
 None  |
|
 32MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 None  |
 None  |
|
 32MB  |
 (1) 1M x 64  |
 (1) 1M x 64  |
 (1) 1M x 64  |
 (1) 1M x 64  |
|
 40MB  |
 (1) 4M x 64  |
 (1) 1M x 64  |
 None  |
 None  |
|
 48MB  |
 (1) 4M x 64  |
 (1) 2M x 64  |
 None  |
 None  |
|
 48MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 None  |
|
 64MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 64MB  |
 (1) 8M x 64  |
 None  |
 None  |
 None  |
|
 64MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 None  |
 None  |
|
 72MB  |
 (1) 8M x 64  |
 (1) 1M x 64  |
 None  |
 None  |
|
 80MB  |
 (1) 8M x 64  |
 (1) 2M x 64  |
 None  |
 None  |
|
 96MB  |
 (1) 8M x 64  |
 (1) 4M x 64  |
 None  |
 None  |
|
 96MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 None  |
|
 DIMM CONFIGURATION (CON'T)  |
||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 128MB  |
 (1) 16M x 64  |
 None  |
 None  |
 None  |
|
 128MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 None  |
 None  |
|
 128MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 136MB  |
 (1) 16M x 64  |
 (1) 1M x 64  |
 None  |
 None  |
|
 144MB  |
 (1) 16M x 64  |
 (1) 2M x 64  |
 None  |
 None  |
|
 176MB  |
 (1) 16M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 192MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
 None  |
 None  |
|
 192MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 None  |
|
 256MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 None  |
 None  |
|
 256MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 8M x 64  |
|
 272MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 1M x 64  |
 (1) 1M x 64  |
|
 288MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 320MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 384MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 None  |
|
 512MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 16M x 64  |
|
 Note: Board accepts EDO memory.  |
||||
|
 CACHE CONFIGURATION  |
|
 Note: 256KB/512KB cache is located on the Pentium II CPU.  |
|

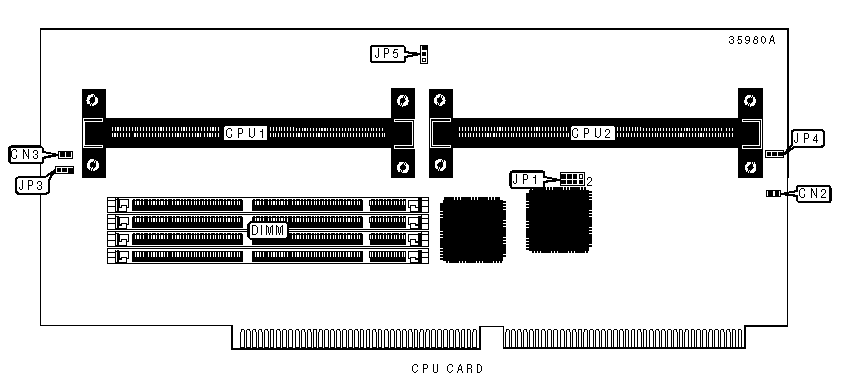

 CPU SPEED SELECTION  |
|||||||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP1/pins 1 & 2  |
 JP1/pins 3 & 4  |
 JP1/pins 5 & 6  |
 JP1/pins 7 & 8  |
 JP5  |
|
 266MHz  |
 66MHz  |
 4x  |
 Closed  |
 Closed  |
 Closed  |
 Open  |
 1 & 2  |
|
 300MHz  |
 66MHz  |
 4.5x  |
 Closed  |
 Open  |
 Closed  |
 Open  |
 1 & 2  |
|
 Note: Pins designated should be in the closed position.  |
|||||||
