ACER, INC.
ACERALTOS 700ED (M5), 700ES (M5), 7000P (M5), 7000V (M5), (M5)
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 80486DX2/80486DX4/Pentium  |
|
 Processor Speed  |
 33/50(internal)/66(internal)/100(internal)/90/100MHz  |
|
 Chip Set  |
 Unidentified  |
|
 Maximum Onboard Memory  |
 512MB  |
|
 Cache  |
 256KB  |
|
 BIOS  |
 Acer  |
|
 Dimensions  |
 330mm x 218mm  |
|
 I/O Options  |
 32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), SCSI interface, parallel port, PS/2 mouse port, serial ports (2), CPU slot  |

|

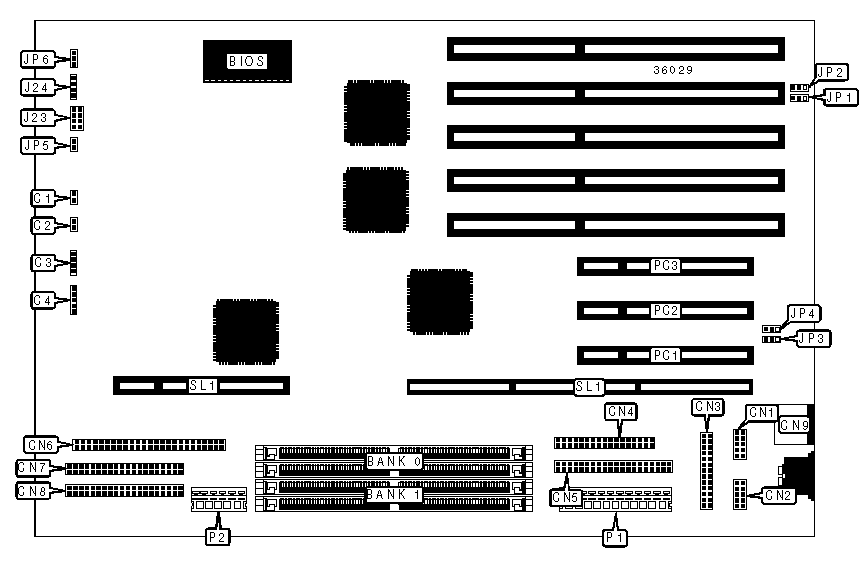

 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Chassis fan power  |
 C1  |
 IDE interface  |
 CN7  |
|
 Chassis fan power  |
 C2  |
 IDE interface  |
 CN8  |
|
 IDE interface LED  |
 C3  |
 PS/2 mouse port  |
 CN9  |
|
 Power LED & keylock  |
 C4  |
 Turbo/reset switch  |
 J23  |
|
 Serial port 1  |
 CN1  |
 Speaker  |
 J24  |
|
 Serial port 2  |
 CN2  |
 5v power  |
 P1  |
|
 Parallel port  |
 CN3  |
 3.3v auxiliary power  |
 P2  |
|
 Floppy drive interface  |
 CN4  |
 32-bit PCI slots  |
 PC1 - PC3  |
|
 Fixed disk interface  |
 CN5  |
 CPU slot  |
 SL1  |
|
 SCSI interface  |
 CN6  |

  |

  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 BIOS type select Acer  |
 JP1  |
 Pins 1 & 2 closed  |
|
 BIOS type select OEM  |
 JP1  |
 Pins 2 & 3 closed  |
|
|
 »  |
 Password disabled  |
 JP2  |
 Pins 2 & 3 closed  |
|
 Password enabled  |
 JP2  |
 Pins 1 & 2 closed  |
|
|
 »  |
 Reset button enabled  |
 JP5  |
 Closed  |
|
 Reset button disabled  |
 JP5  |
 Open  |
|
|
 »  |
 Buzzer enabled  |
 JP6  |
 Pins 1 & 2 closed  |
|
 Speaker enabled  |
 JP6  |
 Pins 2 & 3 closed  |
|
|
 SIMM CONFIGURATION (80486DX4 & SINGLE PENTIUM BOARDS INSTALLED)  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 SIMM CONFIGURATION (DUAL PENTIUM BOARD INSTALLED)  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 16M x 36  |
 None  |
|
 136MB  |
 (2) 16M x 36  |
 (2) 1M x 36  |
|
 144MB  |
 (2) 16M x 36  |
 (2) 2M x 36  |
|
 160MB  |
 (2) 16M x 36  |
 (2) 4M x 36  |
|
 192MB  |
 (2) 16M x 36  |
 (2) 8M x 36  |
|
 256MB  |
 (2) 16M x 36  |
 (2) 16M x 36  |
|
 DMA CHANNEL SELECTION  |
||
|
 Channel  |
 JP3  |
 JP4  |
|
 » 1  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|
 3  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |

|

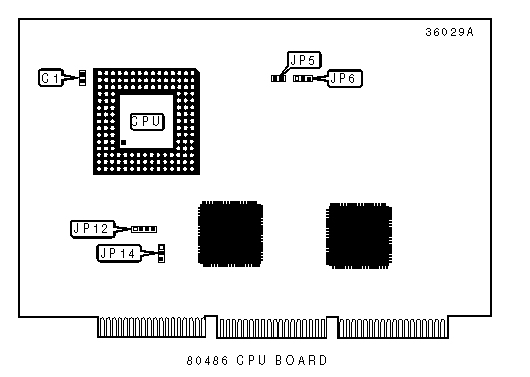

 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Factory configured - do not alter  |
 C1  |
 Unidentified  |
|
 CACHE CONFIGURATION  |
|
 Note: The location of the cache is unidentified.  |
|
 CPU SPEED SELECTION  |
||
|
 Speed  |
 JP6  |
 JP14  |
|
 33MHz  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|
 50iMHz  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |
|
 66iMHz  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|
 100iMHz  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|
 CPU TYPE SELECTION  |
||
|
 Type  |
 JP5  |
 JP12  |
|
 Non SL enhanced  |
 Open  |
 Pins 2 & 3 closed  |
|
 SL enhanced  |
 Closed  |
 Pins 1 & 2, 3 & 4 closed  |

|

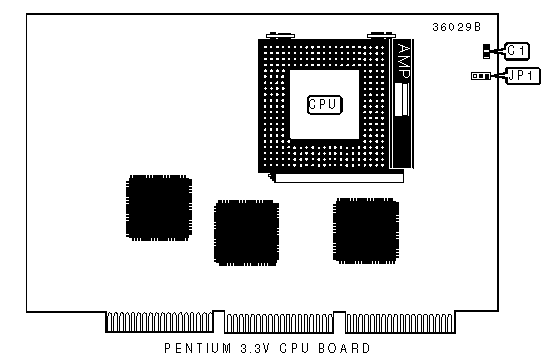

 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Factory configured - do not alter  |
 C1  |
 Unidentified  |
|
 CACHE CONFIGURATION  |
|
 Note: The location of the cache is unidentified.  |
|
 CPU SPEED SELECTION  |
|||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP1  |
|
 90MHz  |
 60MHz  |
 1.5x  |
 Pins 1 & 2 closed  |
|
 100MHz  |
 66MHz  |
 1.5x  |
 Pins 1 & 2 closed  |
|
 100MHz  |
 50MHz  |
 2x  |
 Pins 2 & 3 closed  |

|

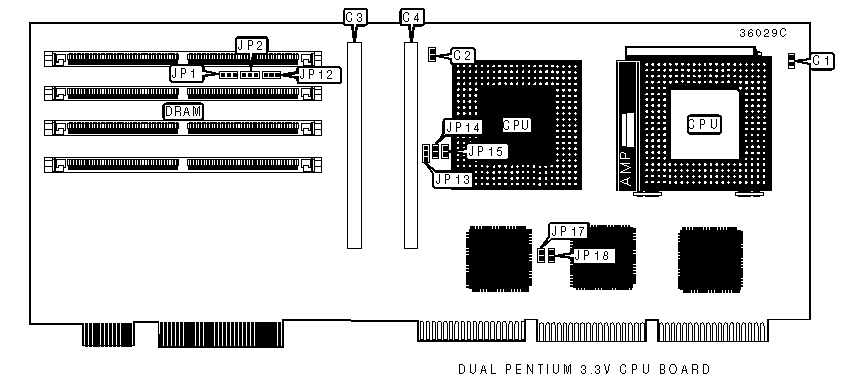

 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Factory configured - do not alter  |
 C1  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 C2  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 C3  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 C4  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 JP1  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 JP2  |
 Unidentified  |
|
 »  |
 Factory configured - do not alter  |
 JP13  |
 Unidentified  |
|
 SIMM CONFIGURATION (DUAL PENTIUM BOARD)  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 16M x 36  |
 None  |
|
 136MB  |
 (2) 16M x 36  |
 (2) 1M x 36  |
|
 144MB  |
 (2) 16M x 36  |
 (2) 2M x 36  |
|
 160MB  |
 (2) 16M x 36  |
 (2) 4M x 36  |
|
 192MB  |
 (2) 16M x 36  |
 (2) 8M x 36  |
|
 256MB  |
 (2) 16M x 36  |
 (2) 16M x 36  |
|
 CACHE CONFIGURATION  |
|
 Note: The location of the cache is unidentified.  |
|
 CACHE JUMPER CONFIGURATION  |
|||||
|
 Type  |
 JP12  |
 JP14  |
 JP15  |
 JP17  |
 JP18  |
|
 Standard  |
 1 & 2  |
 Closed  |
 Closed  |
 Closed  |
 Closed  |
|
 Synchronous  |
 2 & 3  |
 Open  |
 Open  |
 Open  |
 Open  |
|
 Note: Pins designated should be in the closed position.  |
|||||
