Device Type	Single board computer
Processor	Pentium
Processor Speed	100/133MHz
Chip Set	Unidentified
Maximum Onboard Memory	64MB
Cache	Unidentified
BIOS	Unidentified
Dimensions	100mm x 100mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), PC/104 connectors (2)

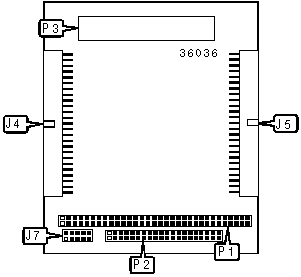

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive/IDE interface	J4	PC/104 connector	P2
Front panel I/O connector	J5	PCI bus connector	P3
PC/104 connector	P1	Power connector	J7
Note: J5 is comprised of speaker, keyboard, mouse, reset, IDE LED, battery, serial ports, IR connector, USB connectors and parallel port.

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J1	Unidentified
»	Factory configured - do not alter	J2	Unidentified
»	Factory configured - do not alter	J3	Unidentified
»	Factory configured - do not alter	J6	Unidentified
Note: The location of the above jumpers is unidentified.

SIMM CONFIGURATION
Size	Bank 0
8MB	8MB module
16MB	16MB module
32MB	32MB module
64MB	64MB module
